Weidmuller
| Part Number | 1793470000 | Manufacturer | Weidmuller |
|---|---|---|---|

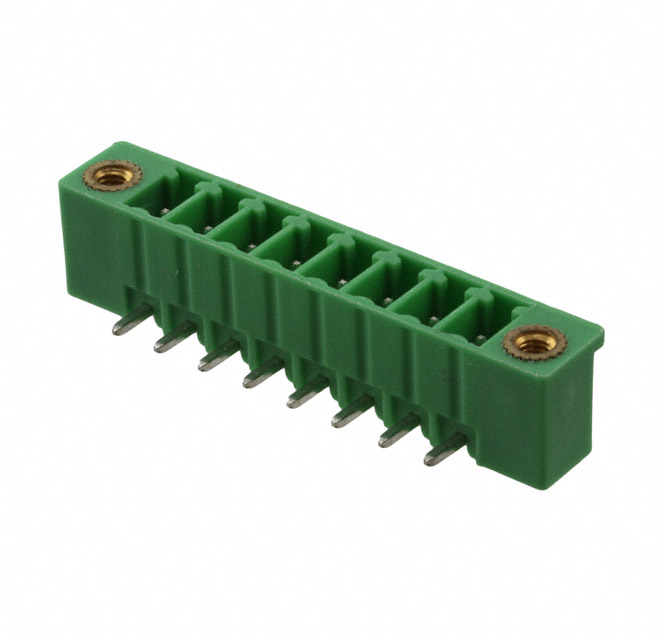

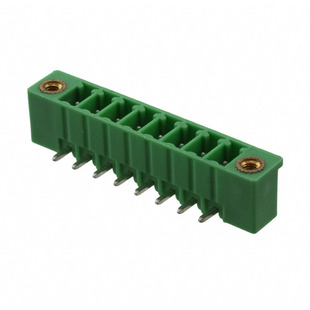

| Description | TERM BLOCK HDR 8POS 90DEG 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18774 pcs | Data sheet | 1793470000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate SC | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 281-1944 SL3.81/8/90F |
Operating Temperature | -50°C ~ 120°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.278" (7.06mm) | Ingress Protection | IP20 |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Header Orientation | 90°, Right Angle |
| Features | Mating Flange | Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | 17.5A |
| Contact Tail Length | 0.126" (3.20mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
