1780200000

WeidmullerWeidmuller

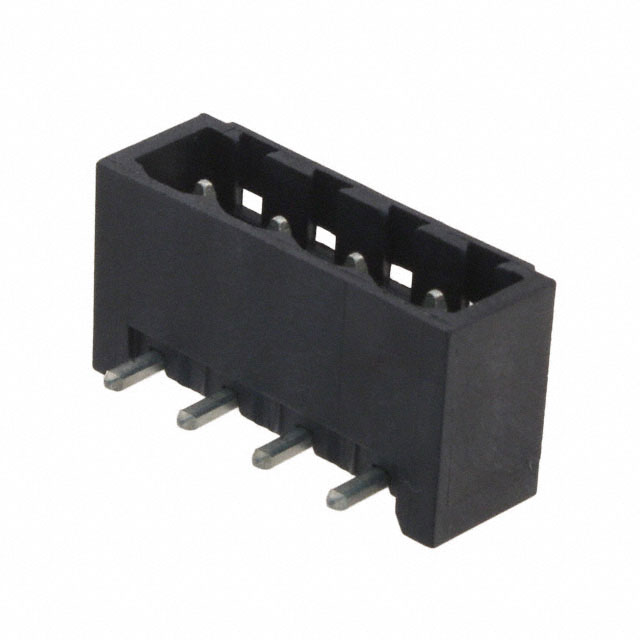

1780200000 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1780200000
Manufacturer/Brand: Weidmuller
Product description TERM BLOCK HDR 4POS 90DEG 5.08MM
Datasheets: 1780200000.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 52090 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 52090 pcs
Reference Price (In US Dollars)
1 pcs
$0.657
10 pcs
$0.497
25 pcs
$0.461
50 pcs
$0.414
100 pcs
$0.404
250 pcs
$0.353
500 pcs
$0.323
1000 pcs
$0.293
5000 pcs
$0.292
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.657

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1780200000

Part Number 1780200000 Manufacturer Weidmuller
Description TERM BLOCK HDR 4POS 90DEG 5.08MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 52090 pcs Data sheet 1780200000.pdf
Wire Strip Length - Wire Gauge or Range - mm² -
Wire Gauge or Range - AWG - Voltage - UL 300V
Voltage - IEC 400V Type Header, Male Pins, Shrouded (4 Side)
Torque - Screw - Termination Style Solder
Series Omnimate SL Screw Size -
Positions Per Level 4 Plug Wire Entry -
Pitch 0.200" (5.08mm) Packaging Bulk
Other Names 281-2845 Operating Temperature -50°C ~ 100°C
Number of Positions 4 Number of Levels 1
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Height 0.335" (8.51mm)
Ingress Protection - Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Header Orientation 90°, Right Angle Features -
Detailed Description 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole Current - UL 18.5A
Current - IEC 27.5A Contact Tail Length 0.126" (3.20mm)
Contact Mating Finish Tin Contact Material Copper Alloy
Color Black
