Weidmuller
| Part Number | 1753042001 | Manufacturer | Weidmuller |
|---|---|---|---|

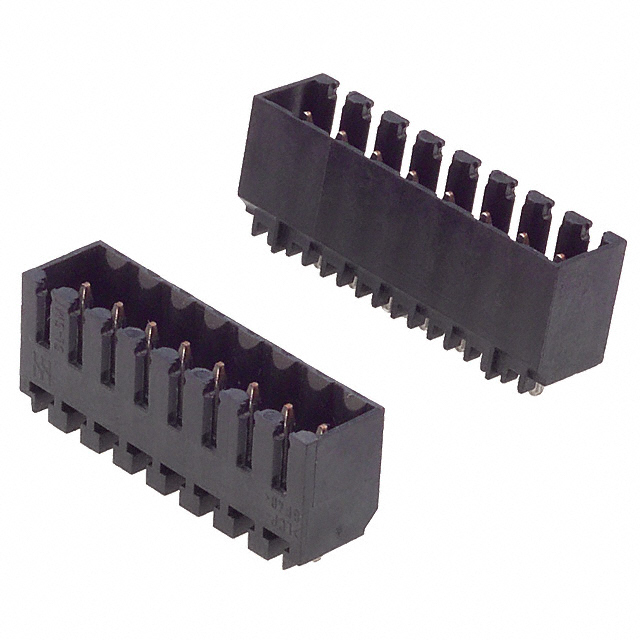

| Description | TERM BLOCK HDR 8POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30456 pcs | Data sheet | 1753042001.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate SL | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 281-1776 SL-SMT3.5/8/180G |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.435" (11.05mm) | Ingress Protection | IP10 |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | Vertical |
| Features | - | Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 10A | Current - IEC | 15A |
| Contact Tail Length | 0.059" (1.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
