Weidmuller
| Part Number | 1716090000 | Manufacturer | Weidmuller |
|---|---|---|---|

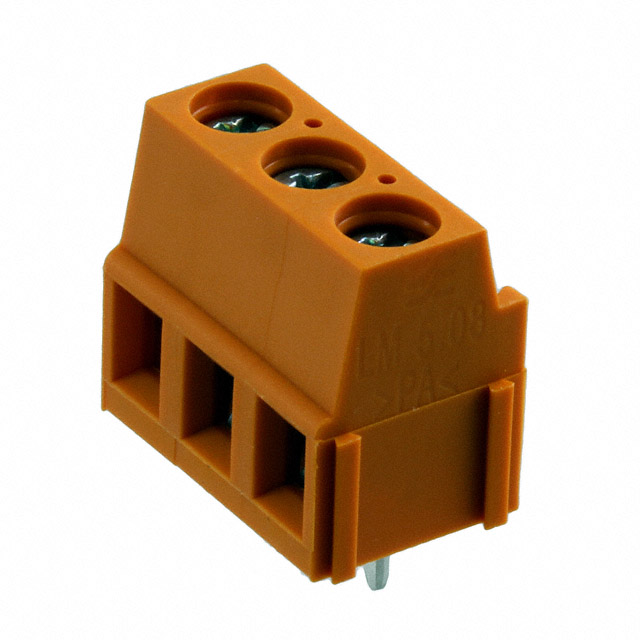

| Description | CONN TERM BLK PCB 5.08MM 3POS OR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40100 pcs | Data sheet | 1716090000.pdf |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve | Wire Gauge | 14-24 AWG |
| Voltage | 300V | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Series | Omnimate LM | Screw Thread | M2.5 |
| Screw Material - Plating | - | Positions Per Level | 3 |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1716090000-ND 281-3126 LM/5.08/90/3 |
Operating Temperature | -50°C ~ 120°C |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Wemid | Features | Interlocking (Side) |
| Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole | Current | 15A |
| Contact Material - Plating | Copper Alloy - Tin Plated | Color | Orange |
| Clamp Material - Plating | - |
