Weidmuller
| Part Number | 1716020000 | Manufacturer | Weidmuller |
|---|---|---|---|

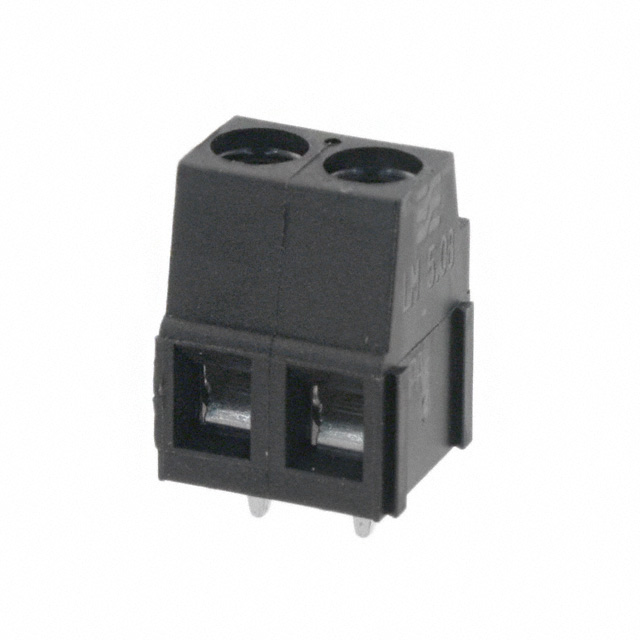

| Description | CONN TERM BLOCK PCB 5.08MM 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55970 pcs | Data sheet | 1716020000.pdf |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve | Wire Gauge | 14-24 AWG |
| Voltage | 300V | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Series | Omnimate LM | Screw Thread | M2.5 |
| Screw Material - Plating | - | Positions Per Level | 2 |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 171602 281-1435 LM 5.08/90/2 |
Operating Temperature | -50°C ~ 120°C |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic, Wemid |
| Features | Interlocking (Side) | Detailed Description | 2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
| Current | 15A | Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Black | Clamp Material - Plating | - |
