Weidmuller

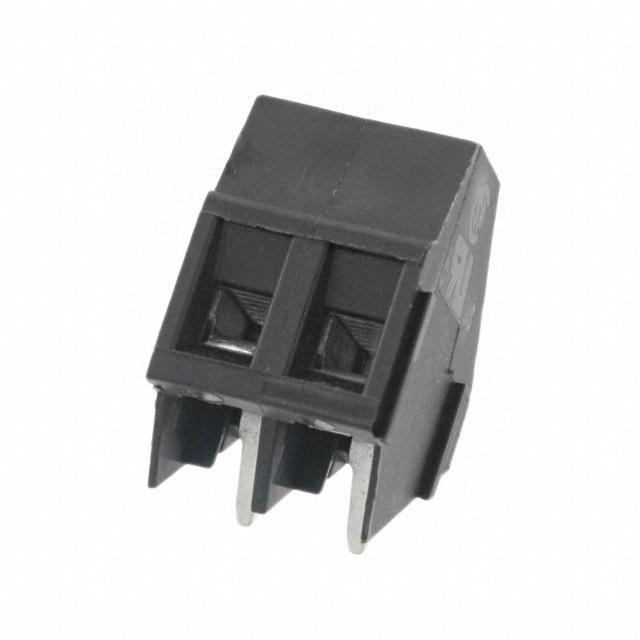

| Part Number | 1715290000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | CONN TERM BLOCK PCB 5.0MM 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44557 pcs | Data sheet | 1715290000.pdf |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve | Wire Gauge | 14-24 AWG |
| Voltage | 300V | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Series | Omnimate LM | Screw Thread | M2.5 |
| Screw Material - Plating | - | Positions Per Level | 2 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 171529 281-1421 LM 5.00/135/2 |
Operating Temperature | -50°C ~ 120°C |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Mating Orientation | 45° (135°) Angle with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic, Wemid |
| Features | Interlocking (Side) | Detailed Description | 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current | 20A | Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Black | Clamp Material - Plating | - |
