Weidmuller

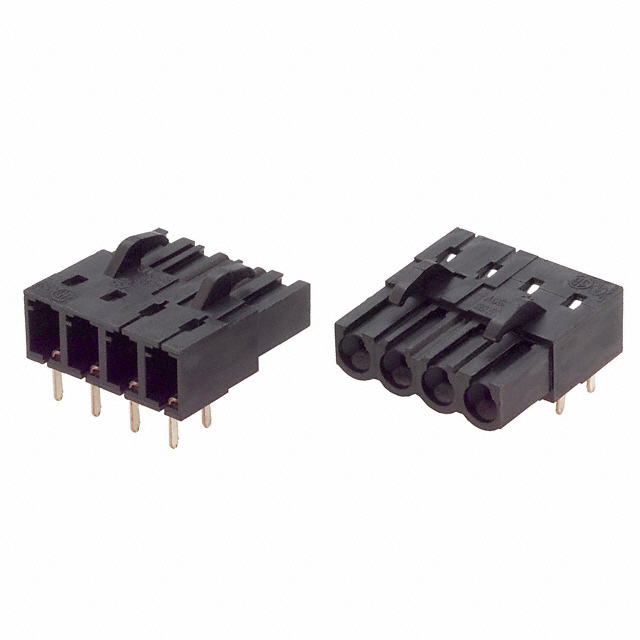

| Part Number | 1646050000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53438 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Female Sockets |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate BL | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 281-1738 BLL5.08/4/90 |
Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.406" (10.31mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | Retention Latches | Detailed Description | 4 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | 0.177" (4.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
