Weidmuller

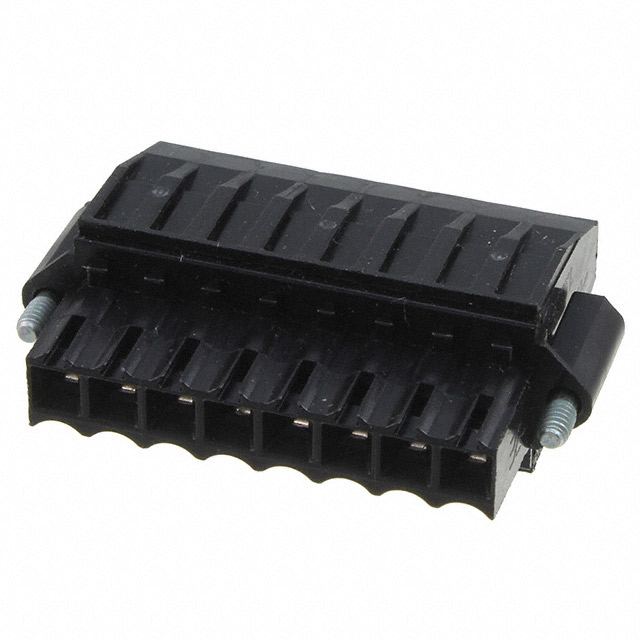

| Part Number | 1640220000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8734 pcs | Data sheet | 1640220000.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 14-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Omnimate BL | Screw Size | M2 |
| Positions Per Level | 8 | Plug Wire Entry | 270° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 164022 281-1049 BL 3.5/270/8 F BK |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.888" (22.56mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
