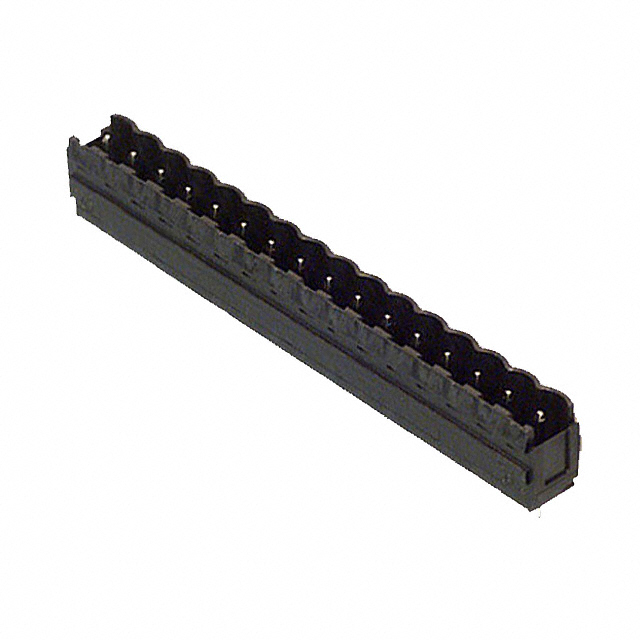

Weidmuller
| Part Number | 1626730000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5368 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate SL | Screw Size | - |
| Positions Per Level | 16 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 162673 281-1241 SL 5.00/180/16 B BK |
Operating Temperature | -20°C ~ 120°C |
| Number of Positions | 16 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | 12A | Contact Tail Length | 0.177" (4.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
