Weidmuller
| Part Number | 1620440000 | Manufacturer | Weidmuller |
|---|---|---|---|

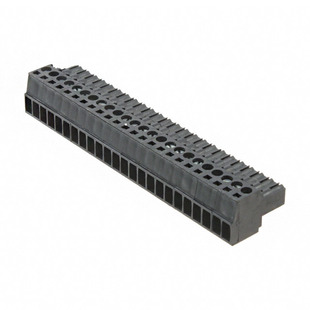

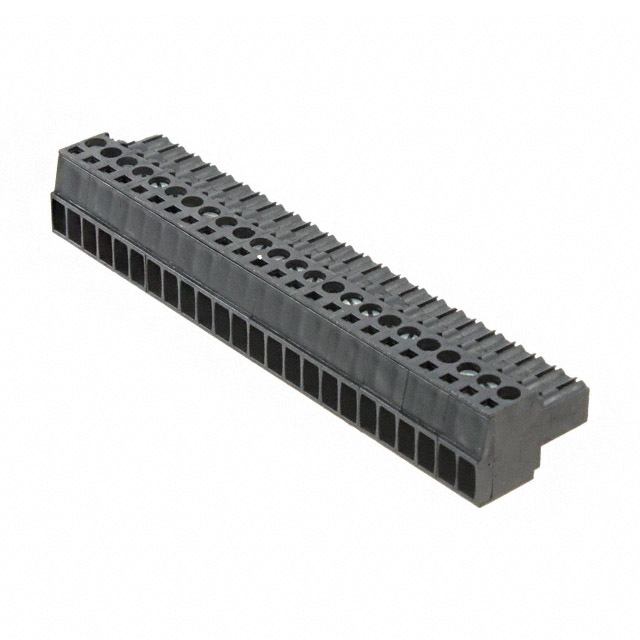

| Description | TERM BLOCK PLUG 24POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5630 pcs | Data sheet | |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 14-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Omnimate BL | Screw Size | M2 |
| Positions Per Level | 24 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 162044 281-1062 BL 3.5/24 BK |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 24 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.512" (13.00mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | - | Detailed Description | 24 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 17A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
