Weidmuller

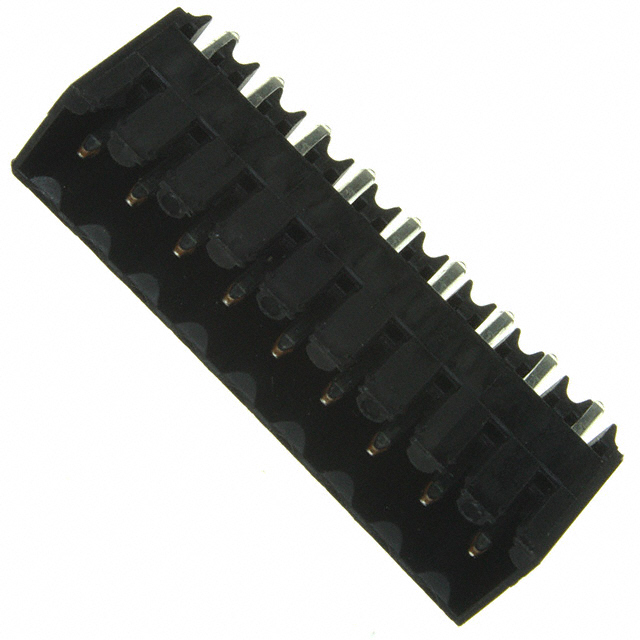

| Part Number | 1616070000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 9POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4600 pcs | Data sheet | 1616070000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 125V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate SL | Screw Size | - |
| Positions Per Level | 9 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | SL3.5/180/9 G BK | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 9 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | 12A | Contact Tail Length | 0.177" (4.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
