Weidmuller
| Part Number | 1526610000 | Manufacturer | Weidmuller |
|---|---|---|---|

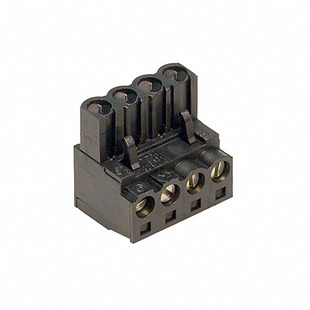

| Description | TERM BLOCK PLUG 4POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19622 pcs | Data sheet | 1526610000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Plug, Female Sockets |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | Omnimate BL | Screw Size | M2.5 |
| Positions Per Level | 4 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 281-1245 BLZ 5.08/4 |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.598" (15.19mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | 19A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
