Weidmuller

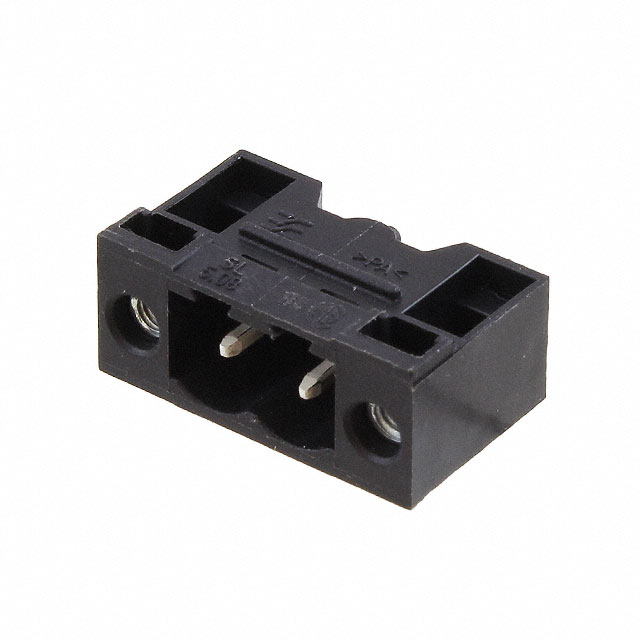

| Part Number | 1150090000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61979 pcs | Data sheet | 1150090000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Omnimate SL | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1150090000-ND 281-3189 SL 5.08HC/02/90F 3.2SN BK BX |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Header Orientation | 90°, Right Angle | Features | Mating and Mounting Flange |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 18.5A |
| Current - IEC | 24A | Contact Tail Length | 0.126" (3.20mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
