Weidmuller
| Part Number | 1081150000 | Manufacturer | Weidmuller |
|---|---|---|---|

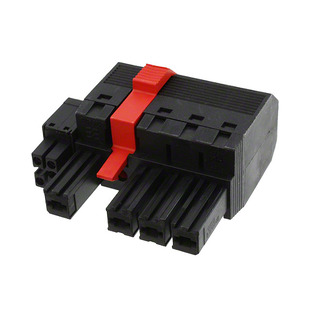

| Description | TERM BLOCK PLUG 8POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7695 pcs | Data sheet | 1081150000.pdf |
| Wire Strip Length | 12mm | Wire Gauge or Range - mm² | 0.5-10mm² |
| Wire Gauge or Range - AWG | 8-24 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | Omnimate BV | Screw Size | - |
| Positions Per Level | 8 (4 Power + 4 Signal) | Plug Wire Entry | 180° |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 281-3052 BVF7.62HP/4/180MF4 BCF/4R |
Operating Temperature | -50°C ~ 125°C |
| Number of Positions | 8 | Number of Levels | Hybrid |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.958" (24.33mm) |
| Ingress Protection | IP20 | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Header Orientation | - | Features | Latch Lock |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 33A |
| Current - IEC | 38A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
