Weidmuller
| Part Number | 1012750000 | Manufacturer | Weidmuller |
|---|---|---|---|

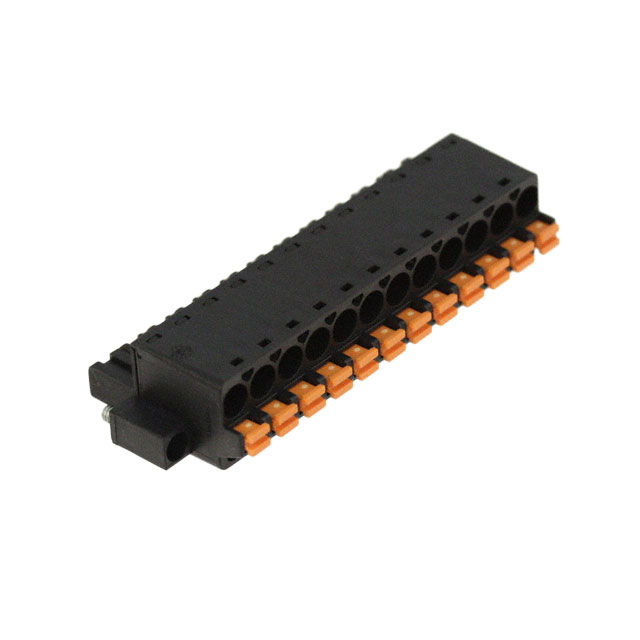

| Description | TERM BLOCK PLUG 12POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11315 pcs | Data sheet | 1012750000.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | Omnimate BL | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 281-2743 | Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.559" (14.20mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) | Current - UL | 18.5A |
| Current - IEC | 24A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
