396-1AB

Wakefield-Vette

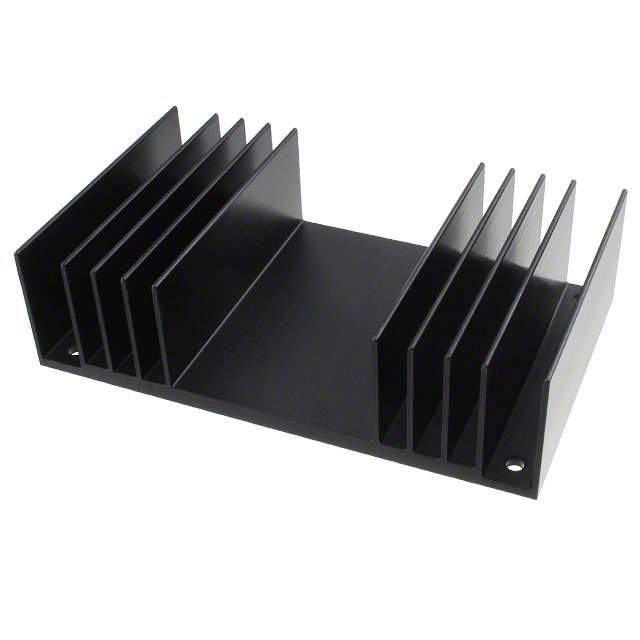

Image may be representation. See specifications for product details.

Product Overview

Part Number:	396-1AB
Manufacturer/Brand:	Wakefield-Vette
Product description	HEATSINK 3X5X1.38" POWER/IGBT
Datasheets:	396-1AB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3651 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3651 pcs

Reference Price (In US Dollars)

1 pcs: $9.515

10 pcs: $8.955

25 pcs: $8.395

50 pcs: $7.836

100 pcs: $7.556

250 pcs: $7.136

500 pcs: $6.996

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.515

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 396-1AB

Part Number	396-1AB	Manufacturer	Wakefield-Vette
Description	HEATSINK 3X5X1.38" POWER/IGBT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3651 pcs	Data sheet	396-1AB.pdf
Width	5.000" (127.00mm)	Type	Board Level
Thermal Resistance @ Natural	1.80°C/W	Thermal Resistance @ Forced Air Flow	1.10°C/W @ 500 LFM
Shape	Rectangular, Fins	Series	396
Power Dissipation @ Temperature Rise	-	Package Cooled	Power Modules
Other Names	345-1179	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	6 Weeks	Length	3.000" (76.20mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	1.382" (35.10mm)
Diameter	-	Detailed Description	Heat Sink Power Modules Aluminum Board Level
Attachment Method	Bolt On
