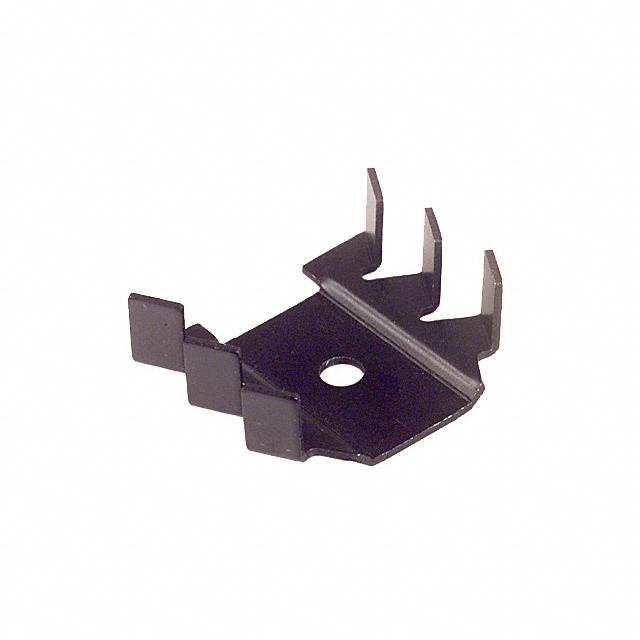

291-H36AB

Wakefield-Vette

Image may be representation. See specifications for product details.

Product Overview

Part Number:	291-H36AB
Manufacturer/Brand:	Wakefield-Vette
Product description	HEATSINK TO-220 BOLT-ON BLK
Datasheets:	1.291-H36AB.pdf 2.291-H36AB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	178923 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 178923 pcs

Reference Price (In US Dollars)

1 pcs: $0.206

10 pcs: $0.197

25 pcs: $0.187

50 pcs: $0.182

100 pcs: $0.18

250 pcs: $0.167

500 pcs: $0.158

1000 pcs: $0.143

5000 pcs: $0.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 291-H36AB

Part Number	291-H36AB	Manufacturer	Wakefield-Vette
Description	HEATSINK TO-220 BOLT-ON BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	178923 pcs	Data sheet	1.291-H36AB.pdf 2.291-H36AB.pdf
Width	1.000" (25.40mm)	Type	Board Level
Thermal Resistance @ Natural	34.00°C/W	Thermal Resistance @ Forced Air Flow	16.00°C/W @ 600 LFM
Shape	Rectangular, Fins	Series	291
Power Dissipation @ Temperature Rise	2.0W @ 68°C	Package Cooled	TO-220
Other Names	291H36AB 345-1025	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	12 Weeks	Length	0.860" (21.84mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.360" (9.14mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Aluminum 2.0W @ 68°C Board Level
Attachment Method	Bolt On
