217-36CTE6

Wakefield-Vette

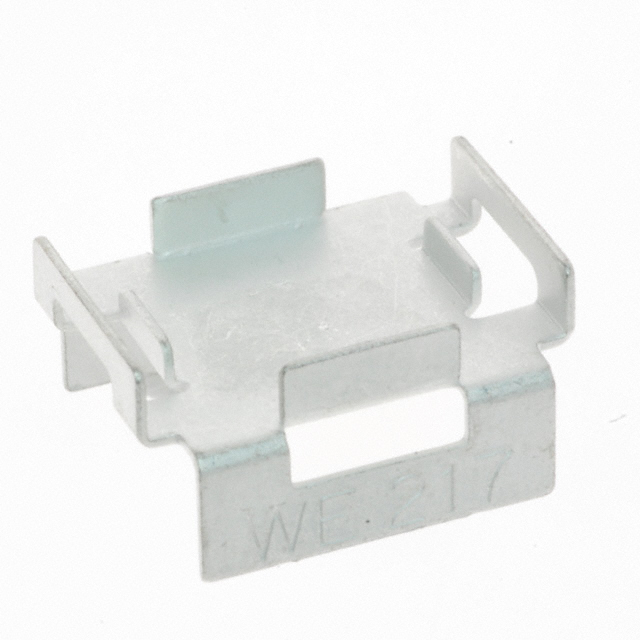

Image may be representation. See specifications for product details.

Product Overview

Part Number:	217-36CTE6
Manufacturer/Brand:	Wakefield-Vette
Product description	HEATSINK DPAK SMT TIN PLATED
Datasheets:	217-36CTE6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	257205 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 257205 pcs

Reference Price (In US Dollars)

1 pcs: $0.137

10 pcs: $0.131

25 pcs: $0.125

50 pcs: $0.122

100 pcs: $0.12

250 pcs: $0.112

500 pcs: $0.105

1000 pcs: $0.095

5000 pcs: $0.092

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.137

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 217-36CTE6

Part Number	217-36CTE6	Manufacturer	Wakefield-Vette
Description	HEATSINK DPAK SMT TIN PLATED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	257205 pcs	Data sheet	217-36CTE6.pdf
Width	0.600" (15.24mm)	Type	Top Mount
Thermal Resistance @ Natural	55.00°C/W	Thermal Resistance @ Forced Air Flow	16.00°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	217
Power Dissipation @ Temperature Rise	1.0W @ 55°C	Package Cooled	D²Pak (TO-263), SOL-20, SOT-223, TO-220
Other Names	139-808351-002 217-36CTE6-ND 21736CTE6 345-1099 Q2679969	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Tin	Material	Copper
Manufacturer Standard Lead Time	12 Weeks	Length	0.740" (18.80mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.360" (9.14mm)
Diameter	-	Detailed Description	Heat Sink D²Pak (TO-263), SOL-20, SOT-223, TO-220 Copper 1.0W @ 55°C Top Mount
Attachment Method	SMD Pad
