Vishay / Semiconductor - Opto Division

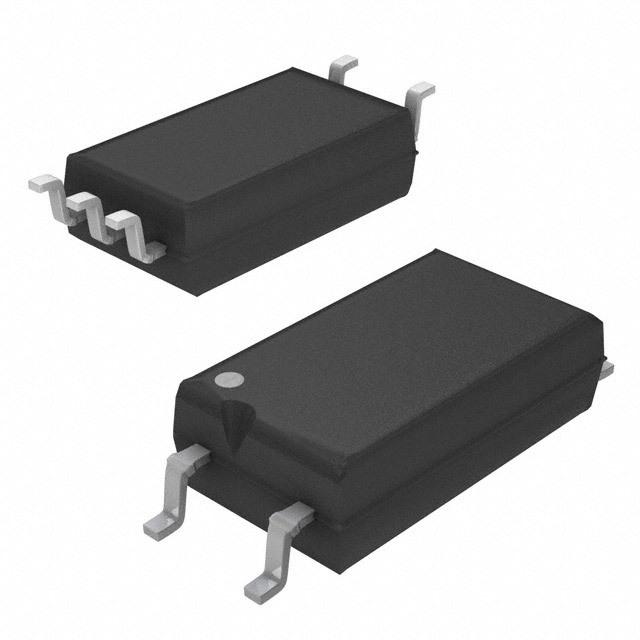

| Part Number | TCLT1105 | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS W/BASE 6SOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 416371 pcs | Data sheet | TCLT1105.pdf |
| Voltage - Output (Max) | 80V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.25V | Vce Saturation (Max) | 300mV |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs | Supplier Device Package | 6-SOP, 5 Pin |
| Series | - | Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Output Type | Transistor with Base | Other Names | TCLT1105-ND TCLT1105TR |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 37 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SOP, 5 Pin |
| Current Transfer Ratio (Min) | 50% @ 5mA | Current Transfer Ratio (Max) | 150% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 60mA |
