SFH690CT

Vishay / Semiconductor - Opto Division

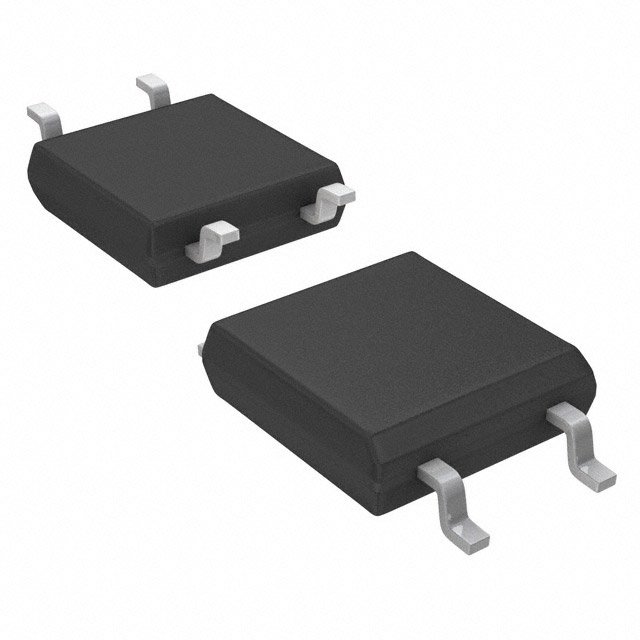

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFH690CT
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISOLATOR 3.75KV TRANS 4-SOP
Datasheets:	1.SFH690CT.pdf 2.SFH690CT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	372812 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 372812 pcs

Reference Price (In US Dollars)

2000 pcs: $0.088

6000 pcs: $0.085

10000 pcs: $0.084

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.088

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFH690CT

Part Number	SFH690CT	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISOLATOR 3.75KV TRANS 4-SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	372812 pcs	Data sheet	1.SFH690CT.pdf 2.SFH690CT.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	5µs, 3µs	Supplier Device Package	4-SOP (2.54mm)
Series	-	Rise / Fall Time (Typ)	3µs, 4µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	SFH690TR
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	25 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Current Transfer Ratio (Min)	100% @ 5mA	Current Transfer Ratio (Max)	200% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
