SFH6702

Vishay / Semiconductor - Opto Division

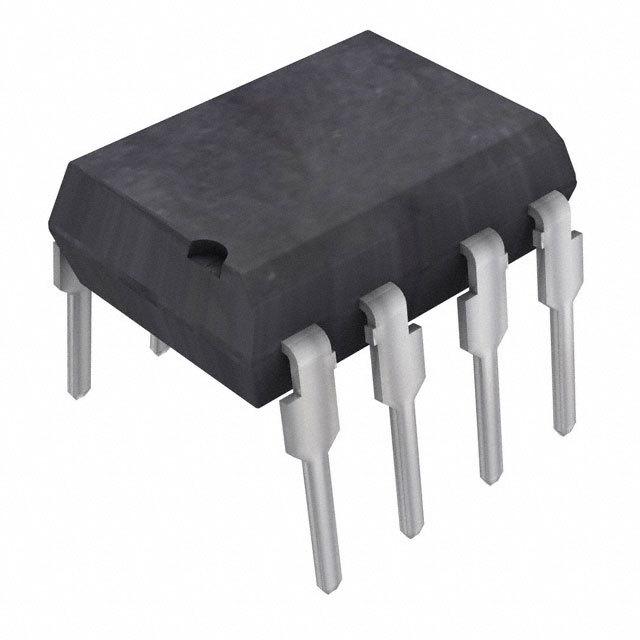

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFH6702
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 5.3KV PUSH PULL 8DIP
Datasheets:	SFH6702.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4592 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4592 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFH6702

Part Number	SFH6702	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 5.3KV PUSH PULL 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4592 pcs	Data sheet	SFH6702.pdf
Voltage - Supply	4.5 V ~ 15 V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.6V	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	40ns, 10ns
Propagation Delay tpLH / tpHL (Max)	300ns, 300ns	Packaging	Tube
Package / Case	8-DIP (0.300", 7.62mm)	Output Type	Push-Pull, Totem Pole
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	1/0
Input Type	DC	Detailed Description	Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP
Data Rate	5MBd	Current - Output / Channel	25mA
Current - DC Forward (If) (Max)	10mA	Common Mode Transient Immunity (Min)	1kV/µs
