SFH615AY-X007T

Vishay / Semiconductor - Opto Division

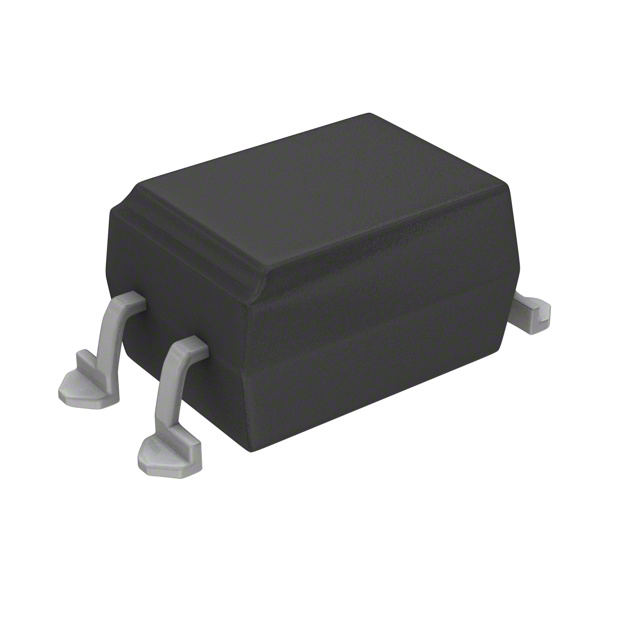

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFH615AY-X007T
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISOLATOR 5.3KV TRANS 4SMD
Datasheets:	1.SFH615AY-X007T.pdf 2.SFH615AY-X007T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	299203 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 299203 pcs

Reference Price (In US Dollars)

1000 pcs: $0.105

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.105

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFH615AY-X007T

Part Number	SFH615AY-X007T	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISOLATOR 5.3KV TRANS 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	299203 pcs	Data sheet	1.SFH615AY-X007T.pdf 2.SFH615AY-X007T.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.25V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	2µs, 25µs	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	150% @ 5mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	60mA
