CNY65ST

Vishay / Semiconductor - Opto Division

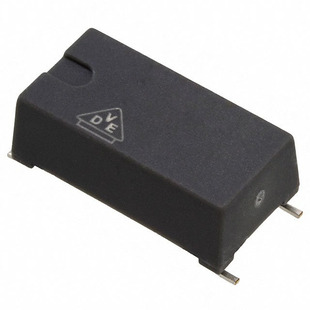

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CNY65ST
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISOLATOR 13.9KV TRANS 4-SMD
Datasheets:	CNY65ST.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	71239 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 71239 pcs

Reference Price (In US Dollars)

400 pcs: $0.488

800 pcs: $0.393

1200 pcs: $0.373

2000 pcs: $0.352

10000 pcs: $0.332

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.488

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CNY65ST

Part Number	CNY65ST	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISOLATOR 13.9KV TRANS 4-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71239 pcs	Data sheet	CNY65ST.pdf
Voltage - Output (Max)	32V	Voltage - Isolation	13900VDC
Voltage - Forward (Vf) (Typ)	1.32V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	5µs, 3µs	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	2.4µs, 2.7µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	CNY65ST-ND CNY65STTR
Operating Temperature	-55°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 13900VDC 1 Channel 4-SMD
Current Transfer Ratio (Min)	50% @ 5mA	Current Transfer Ratio (Max)	300% @ 5mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	75mA
