CSMS15CIC05

VCC (Visual Communications Company)

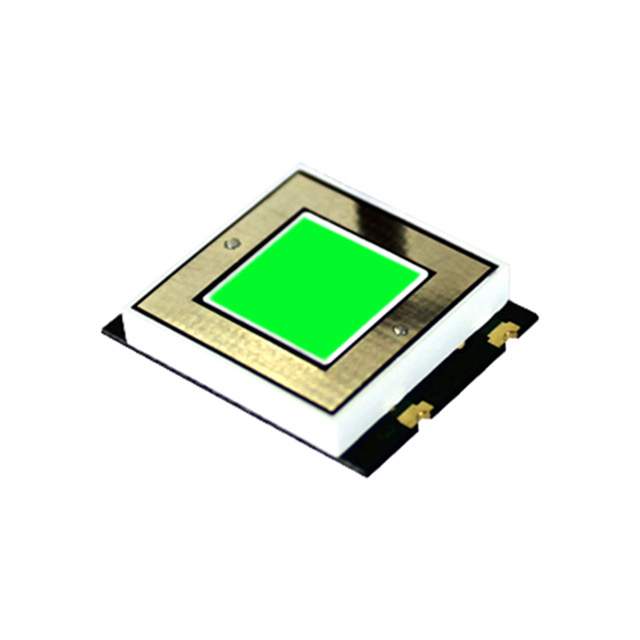

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSMS15CIC05
Manufacturer/Brand:	VCC (Visual Communications Company)
Product description	CSM DISPLAY SMT LED SQUARE 15MM
Datasheets:	1.CSMS15CIC05.pdf 2.CSMS15CIC05.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32813 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32813 pcs

Reference Price (In US Dollars)

750 pcs: $1.136

1500 pcs: $1.079

2250 pcs: $1.034

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.136

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSMS15CIC05

Part Number	CSMS15CIC05	Manufacturer	VCC (Visual Communications Company)
Description	CSM DISPLAY SMT LED SQUARE 15MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32813 pcs	Data sheet	1.CSMS15CIC05.pdf 2.CSMS15CIC05.pdf
Type	Capacitive, Illuminated	Termination Style	SMD (SMT) Tab
Switch Function	Off-Mom	Series	CSM
Panel Cutout Dimensions	-	Packaging	Tape & Reel (TR)
Other Names	CSMS15CIC05TR	Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Mechanical Life	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	3.2 VDC	Illumination Type, Color	LED, Green
Features	-	Electrical Life	-
Detailed Description	Pushbutton Switch Capacitive, Illuminated Surface Mount	Current Rating	-
Color - Actuator/Cap	Clear	Circuit	-
Actuator Type	Square, Button
