VPS24-7300

Triad Magnetics

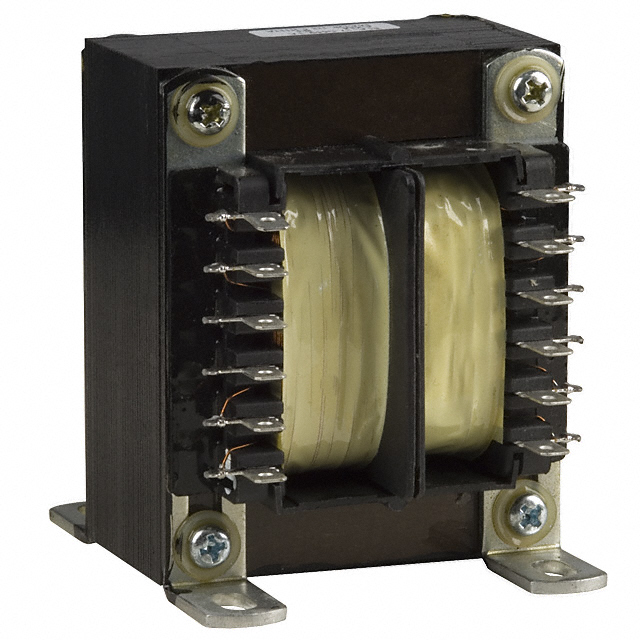

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VPS24-7300
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED 175VA CHAS MOUNT
Datasheets:	VPS24-7300.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2578 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2578 pcs

Reference Price (In US Dollars)

1 pcs: $12.654

10 pcs: $11.164

25 pcs: $10.792

50 pcs: $9.676

100 pcs: $9.304

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VPS24-7300

Part Number	VPS24-7300	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED 175VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2578 pcs	Data sheet	VPS24-7300.pdf
Weight	5.5 lbs (2.5kg)	Voltage - Secondary (Full Load)	Parallel 12V, Series 24V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Laminated Core	Termination Style	Solder, Quick Connect
Size / Dimension	79.50mm L x 71.37mm W	Series	Chassis Mount: World Series™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	175 VA	Other Names	237-1278 VPS247300
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	95.25mm	Current - Output (Max)	Parallel 14.6A, Series 7.3A
Center Tap	No
