VPS10-2500-B

Triad Magnetics

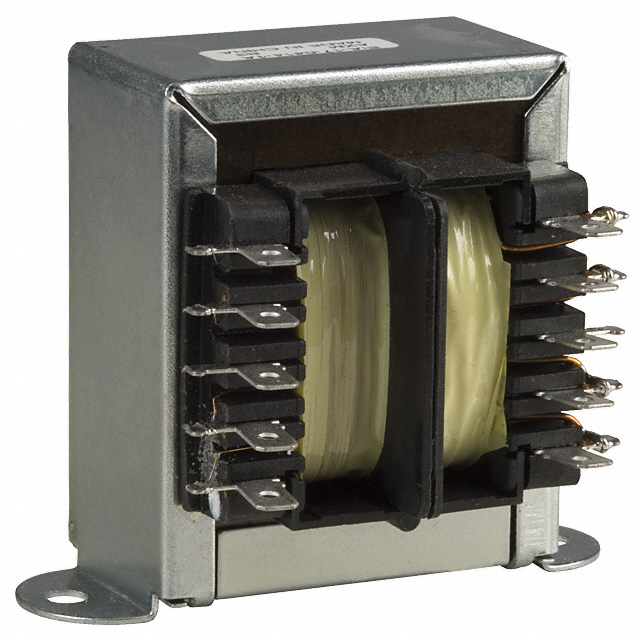

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VPS10-2500-B
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED 25VA CHAS MOUNT
Datasheets:	VPS10-2500-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7515 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7515 pcs

Reference Price (In US Dollars)

8 pcs: $4.977

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.977

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VPS10-2500-B

Part Number	VPS10-2500-B	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED 25VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7515 pcs	Data sheet	VPS10-2500-B.pdf
Weight	1.3 lbs (589.7g)	Voltage - Secondary (Full Load)	Parallel 5V, Series 10V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Laminated Core	Termination Style	Solder, Quick Connect
Size / Dimension	50.80mm L x 49.28mm W	Series	Chassis Mount: World Series™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	25 VA	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	58.67mm
Current - Output (Max)	Parallel 5A, Series 2.5A	Center Tap	No
