VPP36-1560-B

Triad Magnetics

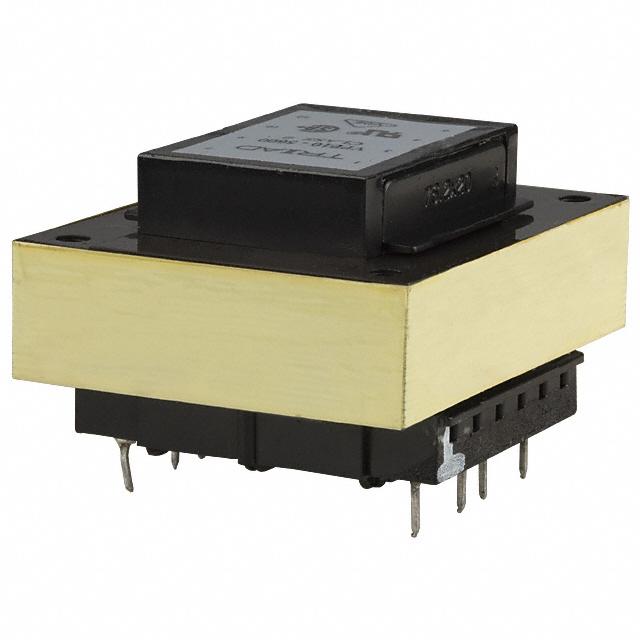

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VPP36-1560-B
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED 56VA THRU HOLE
Datasheets:	VPP36-1560-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7375 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7375 pcs

Reference Price (In US Dollars)

20 pcs: $5.341

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$5.341

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VPP36-1560-B

Part Number	VPP36-1560-B	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED 56VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7375 pcs	Data sheet	VPP36-1560-B.pdf
Weight	1.7 lbs (771.1g)	Voltage - Secondary (Full Load)	Parallel 18V, Series 36V
Voltage - Primary	115V, 230V	Voltage - Isolation	4000Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	76.20mm L x 63.50mm W	Series	PC Mount: World Series™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	56 VA	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	46.02mm
Current - Output (Max)	Parallel 3.12A, Series 1.56A	Center Tap	No
