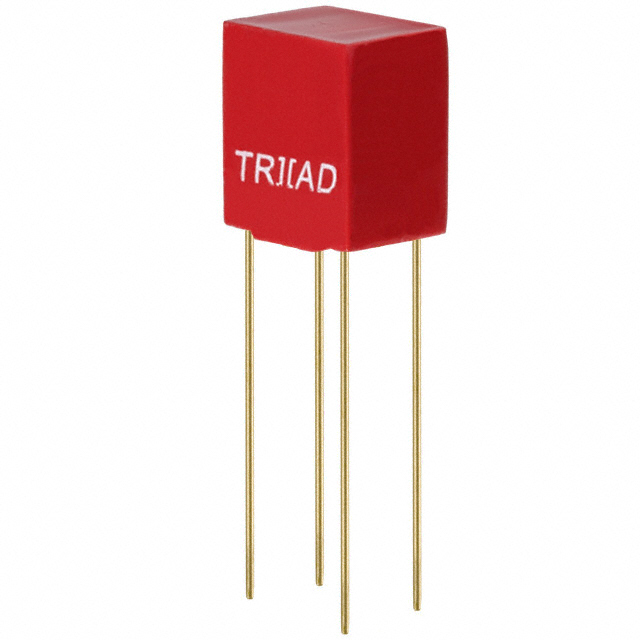

Triad Magnetics
| Part Number | SP-70 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANS 600/ 600 OHM AUDIO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4596 pcs | Data sheet | SP-70.pdf |
| Weight | - | Voltage - Isolation | 1000VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Audio Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.410" L x 0.310" W (10.41mm x 7.87mm) |
| Series | Red-Spec | Return Loss | - |
| Power Level | 50mW | Packaging | Bulk |
| Other Names | 10646 237-1155 SP70 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.465" (11.80mm) |
| Frequency Response | ±2dB | Frequency Range | 300Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary | 92 Ohm | DC Resistance (DCR) - Primary | 72 Ohm |
| Approvals | - |
