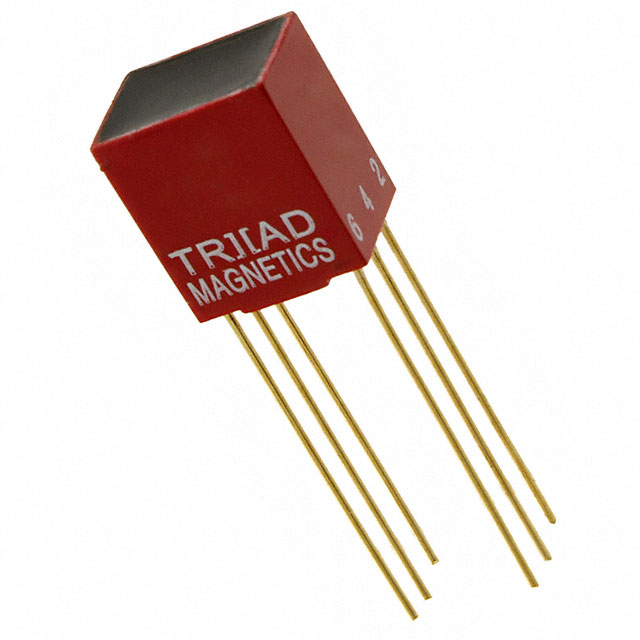

Triad Magnetics
| Part Number | SP-5 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 50K CT/1K CT AUDIO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5461 pcs | Data sheet | SP-5.pdf |
| Weight | - | Voltage - Isolation | 1000VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 7.1:1 | Transformer Type | Audio Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.410" L x 0.310" W (10.41mm x 7.87mm) |
| Series | Red-Spec | Return Loss | - |
| Power Level | 25mW | Packaging | Bulk |
| Other Names | 10629 237-1138 Q1614444 |
Operating Temperature | - |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 1 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 1kCT | Impedance - Primary (Ohms) | 50kCT |
| Height - Seated (Max) | 0.465" (11.80mm) | Frequency Response | ±2dB |
| Frequency Range | 300Hz ~ 100kHz | DC Resistance (DCR) - Secondary | 75 Ohm |
| DC Resistance (DCR) - Primary | 3.8 kOhm | Approvals | - |
