FS24-045

Triad Magnetics

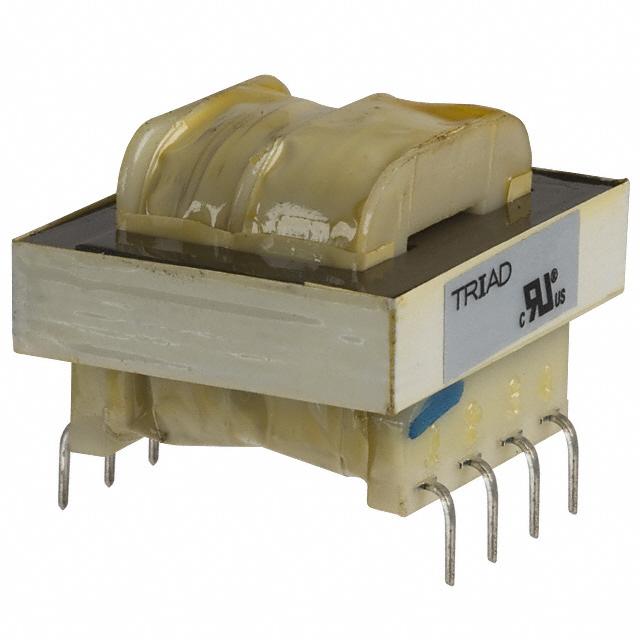

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FS24-045
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED 1.1VA THRU HOLE
Datasheets:	FS24-045.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11580 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11580 pcs

Reference Price (In US Dollars)

1 pcs: $3.074

10 pcs: $2.389

25 pcs: $2.325

50 pcs: $2.002

100 pcs: $1.912

250 pcs: $1.873

500 pcs: $1.84

1000 pcs: $1.808

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.074

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FS24-045

Part Number	FS24-045	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED 1.1VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11580 pcs	Data sheet	FS24-045.pdf
Weight	0.17 lb (77.11g)	Voltage - Secondary (Full Load)	Parallel 12V, Series 24V
Voltage - Primary	115V, 230V	Voltage - Isolation	2500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	34.93mm L x 28.56mm W	Series	Split Pack™
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	1.1 VA	Other Names	10442 237-1028 FS24045
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	23.80mm	Current - Output (Max)	Parallel 90mA, Series 45mA
Center Tap	No
