FIE220-1

Triad MagneticsTriad Magnetics

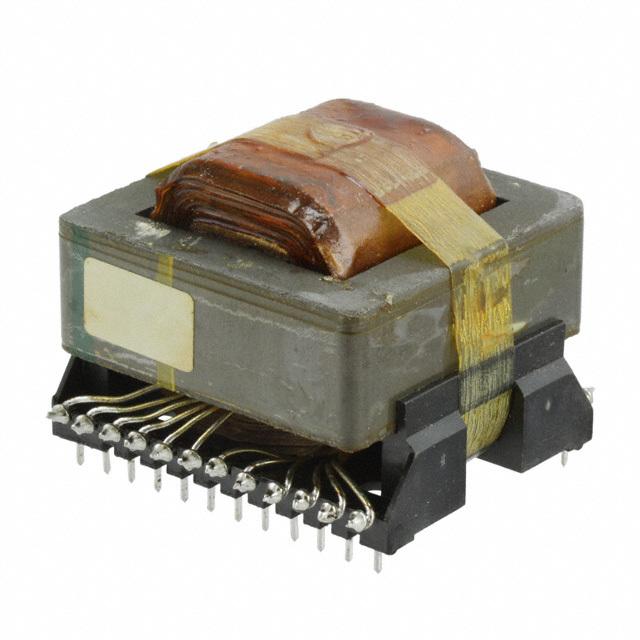

FIE220-1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FIE220-1
Manufacturer/Brand: Triad Magnetics
Product description FIXED IND 11.7UH 120A 1 MOHM TH
Datasheets: FIE220-1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6590 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6590 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FIE220-1

Part Number FIE220-1 Manufacturer Triad Magnetics
Description FIXED IND 11.7UH 120A 1 MOHM TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6590 pcs Data sheet FIE220-1.pdf
Type Wirewound Tolerance ±10%
Supplier Device Package - Size / Dimension 2.350" L x 2.050" W (59.69mm x 52.07mm)
Shielding Unshielded Series -
Ratings - Q @ Freq -
Packaging Bulk Package / Case 24-DIP Module
Other Names Q5156324 Operating Temperature -
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core Ferrite Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 10kHz Inductance 11.7µH
Height - Seated (Max) 2.050" (52.07mm) Frequency - Self Resonant -
Detailed Description 11.7µH Unshielded Wirewound Inductor 120A 1 mOhm 24-DIP Module DC Resistance (DCR) 1 mOhm
Current Rating 120A Current - Saturation -
