FD5-12

Triad Magnetics

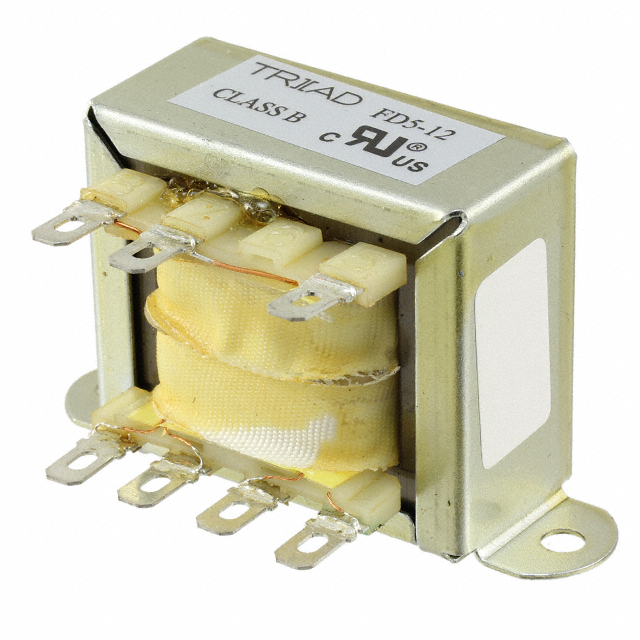

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FD5-12
Manufacturer/Brand:	Triad Magnetics
Product description	XFMR LAM 12.6VCT 12VA CHAS MNT
Datasheets:	FD5-12.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8573 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8573 pcs

Reference Price (In US Dollars)

1 pcs: $4.245

10 pcs: $3.251

25 pcs: $2.754

50 pcs: $2.709

100 pcs: $2.574

250 pcs: $2.546

500 pcs: $2.51

1000 pcs: $2.483

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.245

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FD5-12

Part Number	FD5-12	Manufacturer	Triad Magnetics
Description	XFMR LAM 12.6VCT 12VA CHAS MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8573 pcs	Data sheet	FD5-12.pdf
Weight	0.7 lb (317.51g)	Voltage - Secondary (Full Load)	12.6V
Voltage - Primary	115V, 230V	Voltage - Isolation	2500VAC
Type	Laminated Core	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension	71.42mm L x 34.93mm W	Series	Quick Pack
Secondary Winding(s)	Single	Primary Winding(s)	Dual
Power - Max	12 VA	Other Names	237-1736
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	41.28mm	Current - Output (Max)	1A
Center Tap	Yes
