HomeProductsTransformersPower TransformersF8-10

F8-10

Triad MagneticsTriad Magnetics

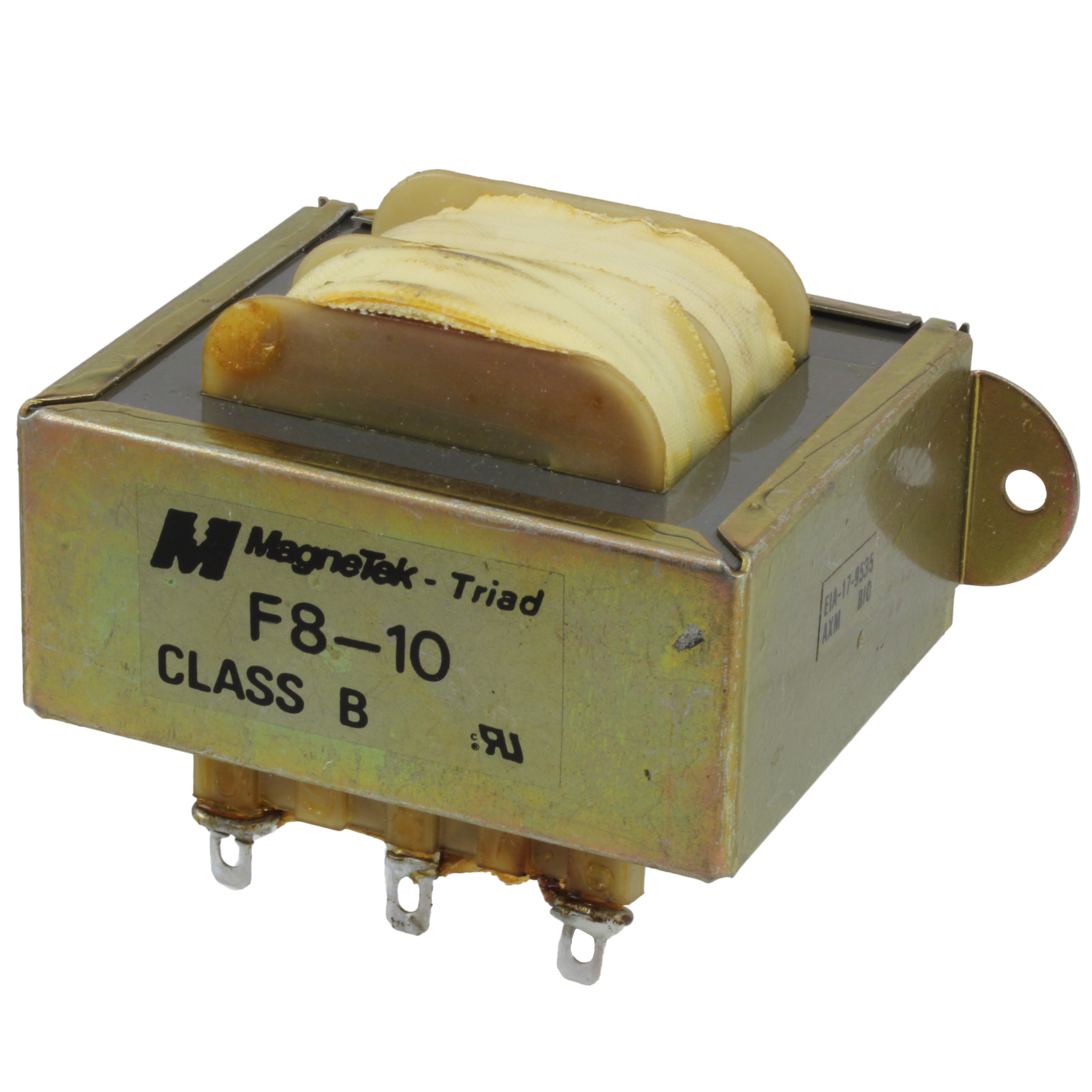

F8-10 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: F8-10
Manufacturer/Brand: Triad Magnetics
Product description XFRMR LAMINATED 100VA CHAS MOUNT
Datasheets: F8-10.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4083 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4083 pcs
Reference Price (In US Dollars)
1 pcs
$7.42
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$7.42

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of F8-10

Part Number F8-10 Manufacturer Triad Magnetics
Description XFRMR LAMINATED 100VA CHAS MOUNT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4083 pcs Data sheet F8-10.pdf
Weight 2.8 lbs (1.3kg) Voltage - Secondary (Full Load) 10V
Voltage - Primary 115V Voltage - Isolation 2500VAC
Type Laminated Core Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension 102.39mm L x 57.15mm W Series Quick Pack
Secondary Winding(s) Single Primary Winding(s) Single
Power - Max 100 VA Other Names 237-1666
F8-10-ND
Q1156248
Mounting Type Chassis Mount Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 65.07mm
Current - Output (Max) 10A Center Tap Yes
