F56-110

Triad Magnetics

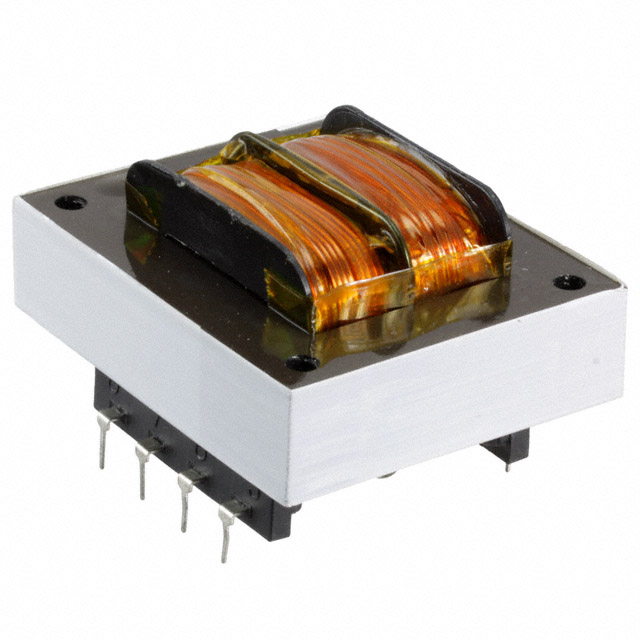

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F56-110
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED THRU HOLE
Datasheets:	F56-110.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15767 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15767 pcs

Reference Price (In US Dollars)

10 pcs: $2.511

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.511

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F56-110

Part Number	F56-110	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15767 pcs	Data sheet	F56-110.pdf
Weight	0.44 lb (199.58g)	Voltage - Secondary (Full Load)	Parallel 28 V, Series 56V
Voltage - Primary	115V	Voltage - Isolation	2500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	41.28mm L x 33.32mm W	Series	Split Pack™, Class 2/3, F
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	6 VA	Other Names	237-1841
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	33.32mm	Current - Output (Max)	Parallel 220mA, Series 110mA
Center Tap	No
