F5-28

Triad Magnetics

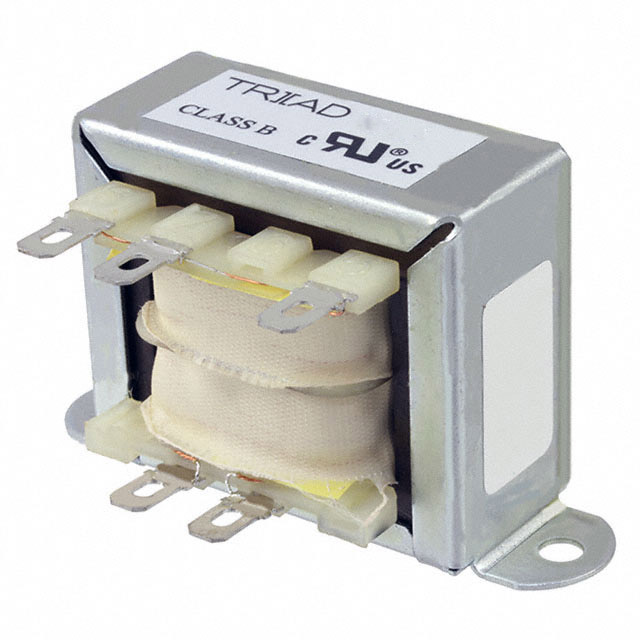

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F5-28
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED THRU HOLE
Datasheets:	F5-28.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8954 pcs

Reference Price (In US Dollars)

1 pcs: $3.591

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.591

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F5-28

Part Number	F5-28	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8954 pcs	Data sheet	F5-28.pdf
Weight	0.7 lb (317.51g)	Voltage - Secondary (Full Load)	28V
Voltage - Primary	115V	Voltage - Isolation	2500VAC
Type	Laminated Core	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension	71.42mm L x 34.93mm W	Series	Quick Pack
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	12 VA	Other Names	237-1695
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	41.28mm	Current - Output (Max)	420mA
Center Tap	Yes
