F-90X

Triad Magnetics

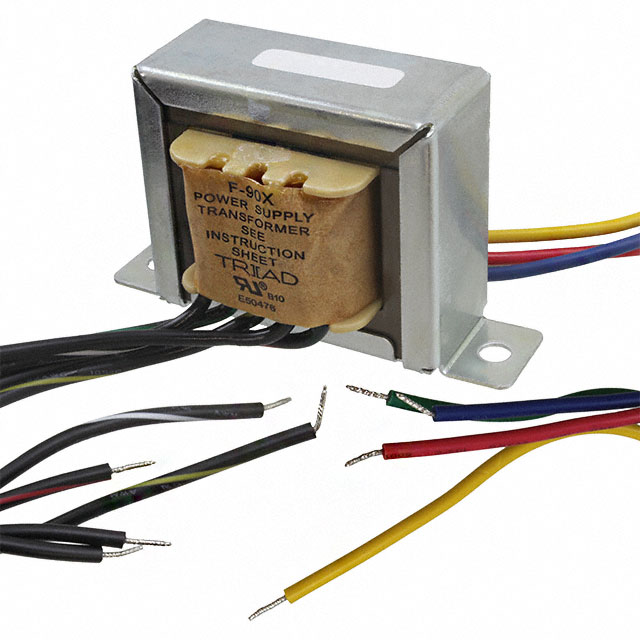

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-90X
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-90X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9716 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9716 pcs

Reference Price (In US Dollars)

1 pcs: $3.508

10 pcs: $2.686

25 pcs: $2.276

50 pcs: $2.238

100 pcs: $2.126

250 pcs: $2.104

500 pcs: $2.074

1000 pcs: $2.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.508

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-90X

Part Number	F-90X	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9716 pcs	Data sheet	F-90X.pdf
Weight	0.7 lb (317.51g)	Voltage - Secondary (Full Load)	10V, 20V, 40V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	71.42mm L x 41.28mm W	Series	Universal
Secondary Winding(s)	Single, Multiple Taps	Primary Winding(s)	Single, Multiple Taps
Power - Max	Varies	Other Names	237-2009
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	41.28mm	Current - Output (Max)	100mA
Center Tap	No
