F-45X

Triad Magnetics

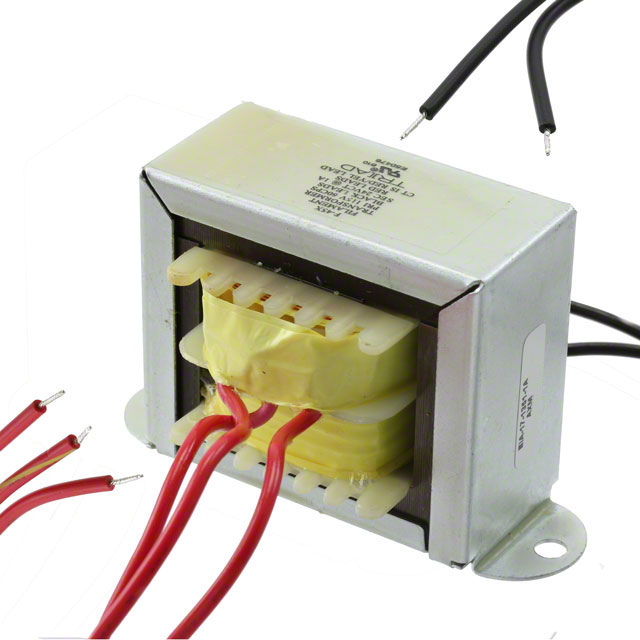

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-45X
Manufacturer/Brand:	Triad Magnetics
Product description	POWER XFMR CHASSIS MOUNT W/LEADS
Datasheets:	F-45X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6458 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6458 pcs

Reference Price (In US Dollars)

1 pcs: $4.761

10 pcs: $3.516

25 pcs: $3.245

50 pcs: $3.137

100 pcs: $3.051

250 pcs: $3.007

500 pcs: $2.975

1000 pcs: $2.921

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.761

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-45X

Part Number	F-45X	Manufacturer	Triad Magnetics
Description	POWER XFMR CHASSIS MOUNT W/LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6458 pcs	Data sheet	F-45X.pdf
Weight	1.3 lbs (589.7g)	Voltage - Secondary (Full Load)	24V
Voltage - Primary	115V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	Wire Leads
Size / Dimension	84.12mm L x 50.80mm W	Series	Single Secondary
Secondary Winding(s)	Single	Primary Winding(s)	Single
Power - Max	24 VA	Other Names	237-1999
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	49.20mm	Current - Output (Max)	1A
Center Tap	Yes
