HomeProductsTransformersPower TransformersF-168XP

F-168XP

Triad MagneticsTriad Magnetics

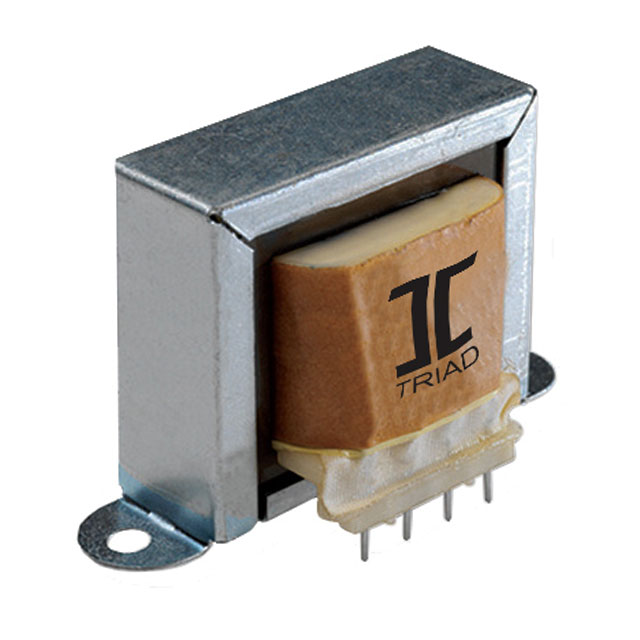

F-168XP Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: F-168XP
Manufacturer/Brand: Triad Magnetics
Product description PC MOUNT POWER TRANSFORMER
Datasheets: F-168XP.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 11428 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 11428 pcs
Reference Price (In US Dollars)
1 pcs
$3.428
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$3.428

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of F-168XP

Part Number F-168XP Manufacturer Triad Magnetics
Description PC MOUNT POWER TRANSFORMER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 11428 pcs Data sheet F-168XP.pdf
Weight 0.469 lb (212.73g) Voltage - Secondary (Full Load) Parallel 15V, Series 32V
Voltage - Primary 115V Voltage - Isolation 1500Vrms
Type Laminated Core Termination Style PC Pin
Size / Dimension 60.33mm L x 31.75mm W Series -
Secondary Winding(s) Dual Primary Winding(s) Single
Power - Max 4.5 VA Mounting Type Through Hole
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 36.45mm Current - Output (Max) Parallel 195mA, Series 50mA
Center Tap Yes
