CMT-8121

Triad Magnetics

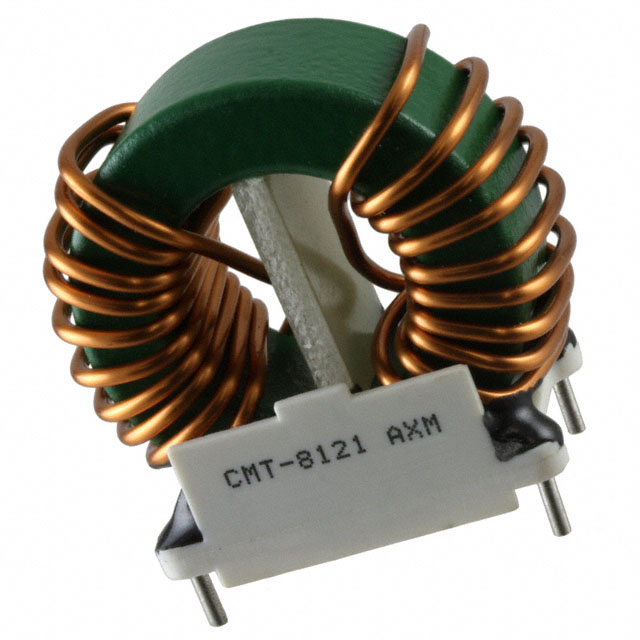

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CMT-8121
Manufacturer/Brand:	Triad Magnetics
Product description	COMMON MODE CHOKE 1MH 20A 2LN TH
Datasheets:	CMT-8121.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10914 pcs

Reference Price (In US Dollars)

1 pcs: $3.009

10 pcs: $2.709

100 pcs: $1.926

500 pcs: $1.806

1000 pcs: $1.686

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.009

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CMT-8121

Part Number	CMT-8121	Manufacturer	Triad Magnetics
Description	COMMON MODE CHOKE 1MH 20A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10914 pcs	Data sheet	CMT-8121.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.700" L x 0.900" W (43.18mm x 22.86mm)	Series	CMT
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	237-1372 CMT8121
Operating Temperature	-55°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	1mH @ 1kHz	Height (Max)	1.650" (41.91mm)
Filter Type	Power Line	Features	ESD
Detailed Description	1mH @ 1kHz 2 Line Common Mode Choke Through Hole 20A DCR 7 mOhm	DC Resistance (DCR) (Max)	7 mOhm
Current Rating (Max)	20A	Approvals	-
