CMT-8110

Triad Magnetics

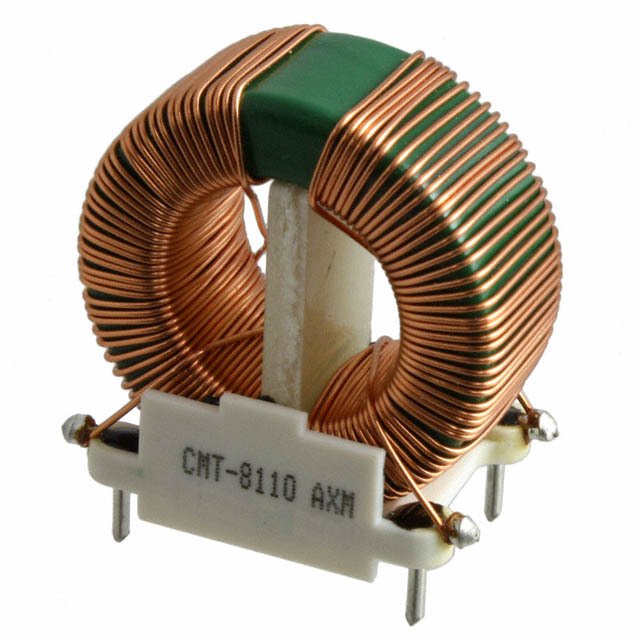

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CMT-8110
Manufacturer/Brand:	Triad Magnetics
Product description	CMC 20MH 2.9A 2LN TH
Datasheets:	CMT-8110.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13057 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13057 pcs

Reference Price (In US Dollars)

1 pcs: $2.818

10 pcs: $2.537

100 pcs: $1.804

500 pcs: $1.691

1000 pcs: $1.578

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.818

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CMT-8110

Part Number	CMT-8110	Manufacturer	Triad Magnetics
Description	CMC 20MH 2.9A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13057 pcs	Data sheet	CMT-8110.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.350" L x 0.800" W (34.29mm x 20.32mm)	Series	CMT
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	237-1382 CMT8110
Operating Temperature	-55°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	20mH @ 1kHz	Height (Max)	1.450" (36.83mm)
Filter Type	Power Line	Features	ESD
Detailed Description	20mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 210 mOhm	DC Resistance (DCR) (Max)	210 mOhm
Current Rating (Max)	2.9A	Approvals	-
