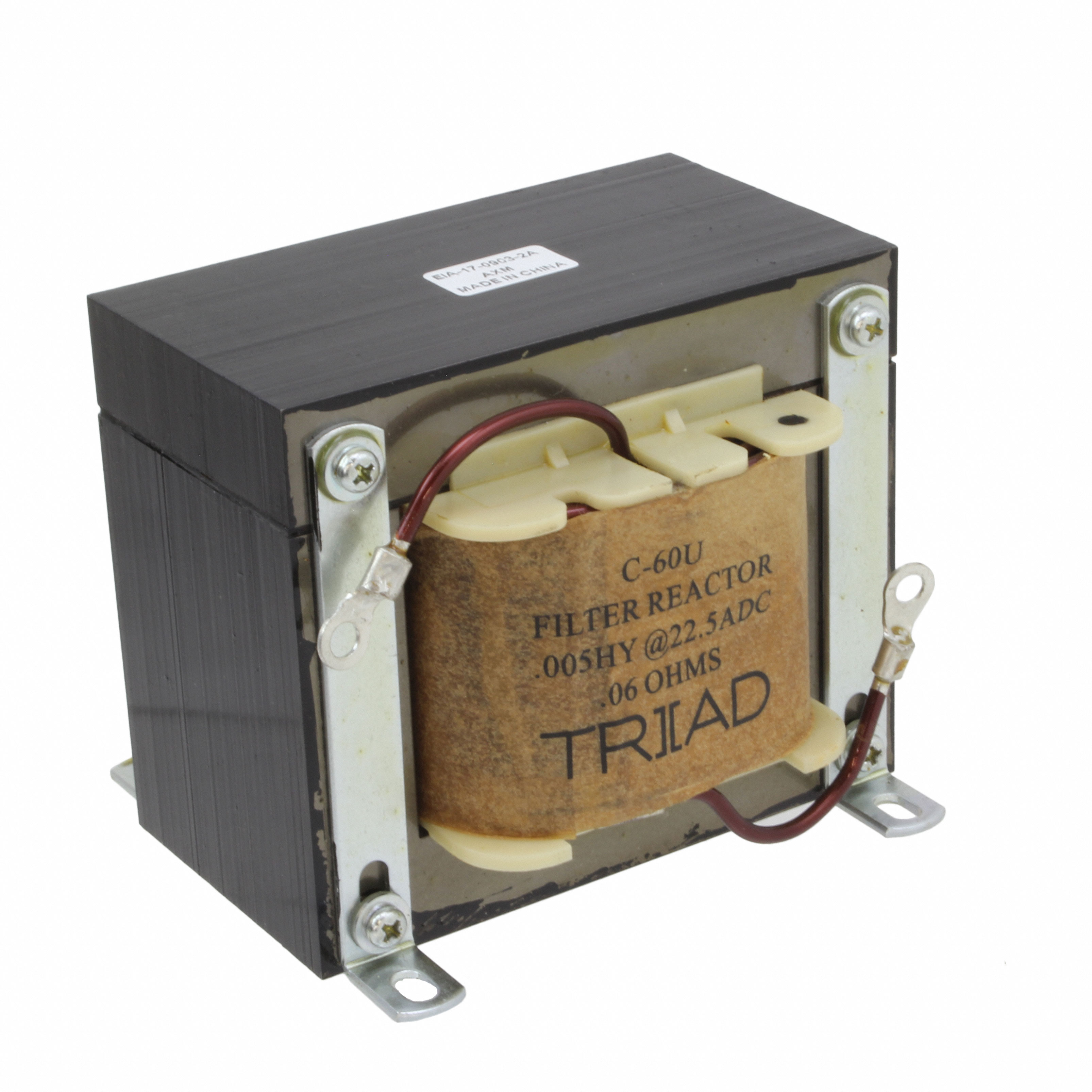

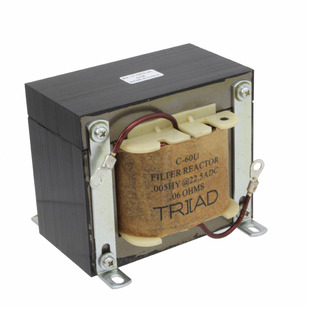

C-60U

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	C-60U
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 5MH 22.5A 60 MOHM CHAS
Datasheets:	C-60U.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	732 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 732 pcs

Reference Price (In US Dollars)

1 pcs: $42.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$42.048

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of C-60U

Part Number	C-60U	Manufacturer	Triad Magnetics
Description	FIXED IND 5MH 22.5A 60 MOHM CHAS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	732 pcs	Data sheet	C-60U.pdf
Type	Wirewound	Tolerance	-20%, +50%
Supplier Device Package	-	Size / Dimension	4.500" L x 4.187" W (114.30mm x 106.35mm)
Shielding	Unshielded	Series	-
Ratings	-	Q @ Freq	-
Packaging	Bulk	Package / Case	Nonstandard
Other Names	237-1784	Operating Temperature	-
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	120Hz
Inductance	5mH	Height - Seated (Max)	3.750" (95.25mm)
Frequency - Self Resonant	-	Detailed Description	5mH Unshielded Wirewound Inductor 22.5A 60 mOhm Nonstandard
DC Resistance (DCR)	60 mOhm	Current Rating	22.5A
Current - Saturation	-
