AX97-301R0

Triad Magnetics

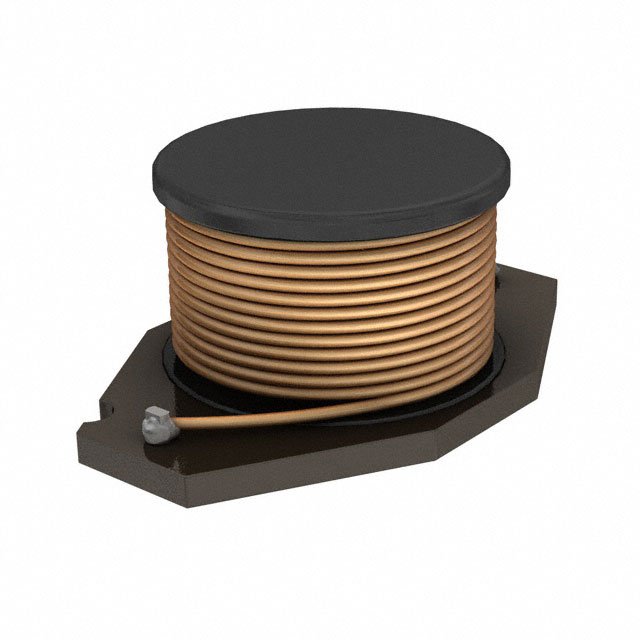

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AX97-301R0
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 1UH 8.5A 10 MOHM
Datasheets:	AX97-301R0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54319 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54319 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AX97-301R0

Part Number	AX97-301R0	Manufacturer	Triad Magnetics
Description	FIXED IND 1UH 8.5A 10 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54319 pcs	Data sheet	AX97-301R0.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.530" L x 0.370" W (13.46mm x 9.40mm)
Shielding	Unshielded	Series	AX97
Ratings	-	Q @ Freq	-
Packaging	Bulk	Package / Case	Nonstandard
Operating Temperature	-	Mounting Type	Surface Mount
Material - Core	Ferrite	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	1µH	Height - Seated (Max)	0.232" (5.90mm)
Frequency - Self Resonant	-	Detailed Description	1µH Unshielded Wirewound Inductor 8.5A 10 mOhm Max Nonstandard
DC Resistance (DCR)	10 mOhm Max	Current Rating	8.5A
Current - Saturation	-
