AX97-20101

Triad Magnetics

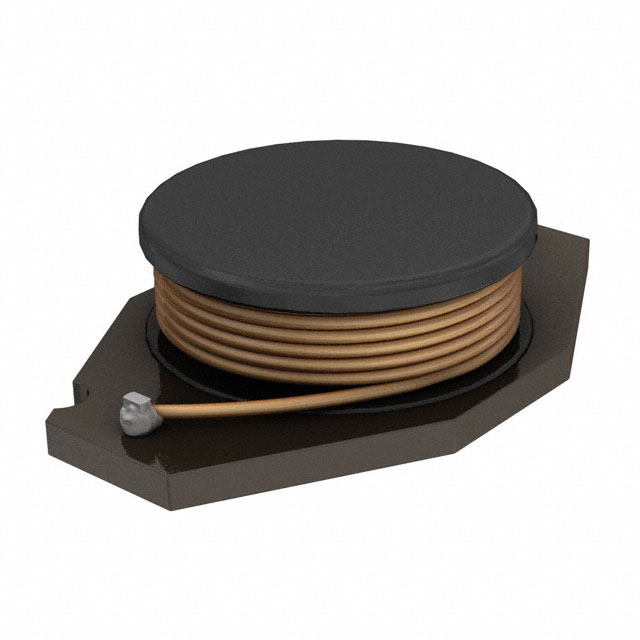

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AX97-20101
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 100UH 600MA 580 MOHM
Datasheets:	AX97-20101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	112133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 112133 pcs

Reference Price (In US Dollars)

1000 pcs: $0.283

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.283

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AX97-20101

Part Number	AX97-20101	Manufacturer	Triad Magnetics
Description	FIXED IND 100UH 600MA 580 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	112133 pcs	Data sheet	AX97-20101.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.530" L x 0.370" W (13.46mm x 9.40mm)
Shielding	Unshielded	Series	AX97
Ratings	-	Q @ Freq	-
Package / Case	Nonstandard	Operating Temperature	-
Mounting Type	Surface Mount	Material - Core	Ferrite
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	100µH
Height - Seated (Max)	0.138" (3.50mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	100µH Unshielded Wirewound Inductor 600mA 580 mOhm Max Nonstandard
DC Resistance (DCR)	580 mOhm Max	Current Rating	600mA
Current - Saturation	-
