AX97-101R5

Triad Magnetics

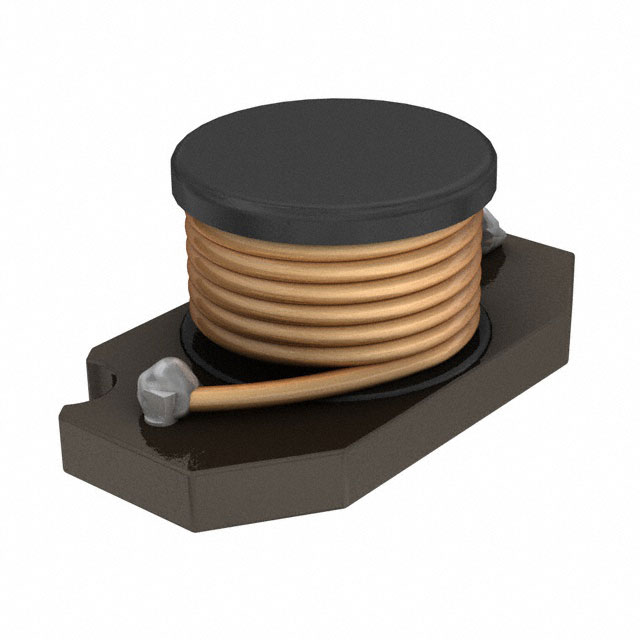

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AX97-101R5
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 1.5UH 2.8A 50 MOHM SMD
Datasheets:	AX97-101R5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	119166 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119166 pcs

Reference Price (In US Dollars)

500 pcs: $0.289

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AX97-101R5

Part Number	AX97-101R5	Manufacturer	Triad Magnetics
Description	FIXED IND 1.5UH 2.8A 50 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	119166 pcs	Data sheet	AX97-101R5.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.287" L x 0.188" W (7.30mm x 4.78mm)
Shielding	Unshielded	Series	AX97
Ratings	-	Q @ Freq	-
Package / Case	Nonstandard	Operating Temperature	-
Mounting Type	Surface Mount	Material - Core	Ferrite
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	1.5µH
Height - Seated (Max)	0.127" (3.23mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	1.5µH Unshielded Wirewound Inductor 2.8A 50 mOhm Max Nonstandard
DC Resistance (DCR)	50 mOhm Max	Current Rating	2.8A
Current - Saturation	-
