AX02-303R9

Triad Magnetics

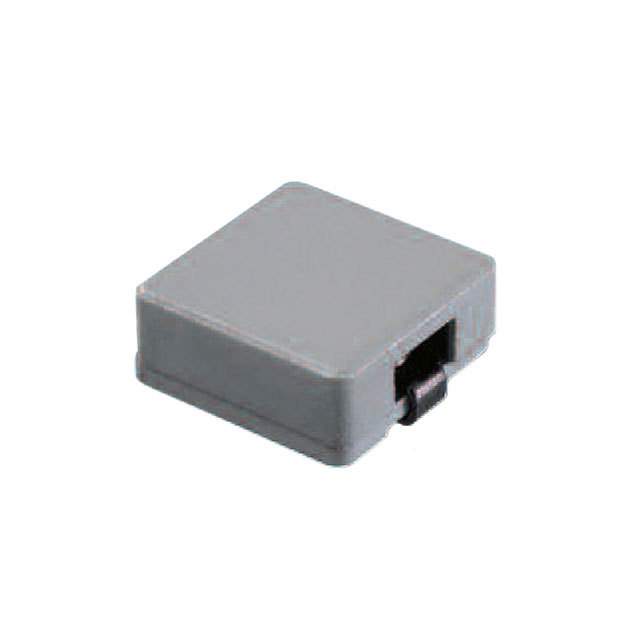

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AX02-303R9
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 3.9UH 10A 6.8 MOHM SMD
Datasheets:	AX02-303R9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	79447 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 79447 pcs

Reference Price (In US Dollars)

480 pcs: $0.387

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.387

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AX02-303R9

Part Number	AX02-303R9	Manufacturer	Triad Magnetics
Description	FIXED IND 3.9UH 10A 6.8 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	79447 pcs	Data sheet	AX02-303R9.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	SMD	Size / Dimension	0.524" L x 0.591" W (13.30mm x 15.00mm)
Shielding	Shielded	Series	AX02
Ratings	-	Q @ Freq	-
Package / Case	2-SMD, J-Lead	Operating Temperature	-
Mounting Type	Surface Mount	Material - Core	Ferrite
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	3.9µH
Height - Seated (Max)	0.256" (6.50mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	3.9µH Shielded Wirewound Inductor 10A 6.8 mOhm Max 2-SMD, J-Lead
DC Resistance (DCR)	6.8 mOhm Max	Current Rating	10A
Current - Saturation	18A
