TPD3215M

Transphorm

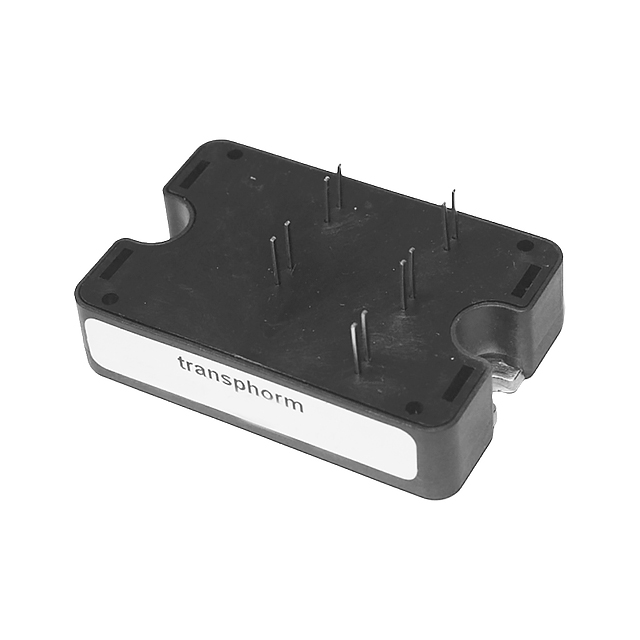

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TPD3215M
Manufacturer/Brand:	Transphorm
Product description	CASCODE GAN HB 600V 70A MODULE
Datasheets:	TPD3215M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	477 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 477 pcs

Reference Price (In US Dollars)

1 pcs: $74.289

10 pcs: $70.704

25 pcs: $68.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$74.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TPD3215M

Part Number	TPD3215M	Manufacturer	Transphorm
Description	CASCODE GAN HB 600V 70A MODULE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	477 pcs	Data sheet	TPD3215M.pdf
Vgs(th) (Max) @ Id	-	Supplier Device Package	Module
Series	-	Rds On (Max) @ Id, Vgs	34 mOhm @ 30A, 8V
Power - Max	470W	Packaging	Bulk
Package / Case	Module	Other Names	TPH3215M TPH3215M-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2260pF @ 100V	Gate Charge (Qg) (Max) @ Vgs	28nC @ 8V
FET Type	2 N-Channel (Half Bridge)	FET Feature	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	600V	Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 600V 70A (Tc) 470W Through Hole Module
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
