Toshiba Semiconductor and Storage

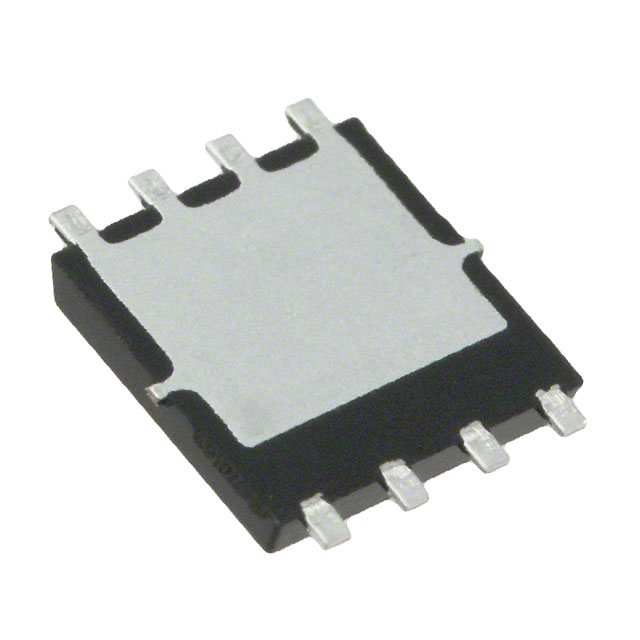

| Part Number | TPCA8026(TE12L,Q,M | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 30V 45A 8-SOP ADV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42672 pcs | Data sheet | 1.TPCA8026(TE12L,Q,M.pdf2.TPCA8026(TE12L,Q,M.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-SOP Advance (5x5) |
| Series | U-MOSIV | Rds On (Max) @ Id, Vgs | 2.2 mOhm @ 23A, 10V |
| Power Dissipation (Max) | 1.6W (Ta), 45W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerVDFN | Other Names | TPCA8026TE12LQM TPCA8026TE12LQMCT |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 4200pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 113nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 45A (Ta) 1.6W (Ta), 45W (Tc) Surface Mount 8-SOP Advance (5x5) | Current - Continuous Drain (Id) @ 25°C | 45A (Ta) |
