TPCA8009-H(TE12L,Q

Toshiba Semiconductor and Storage

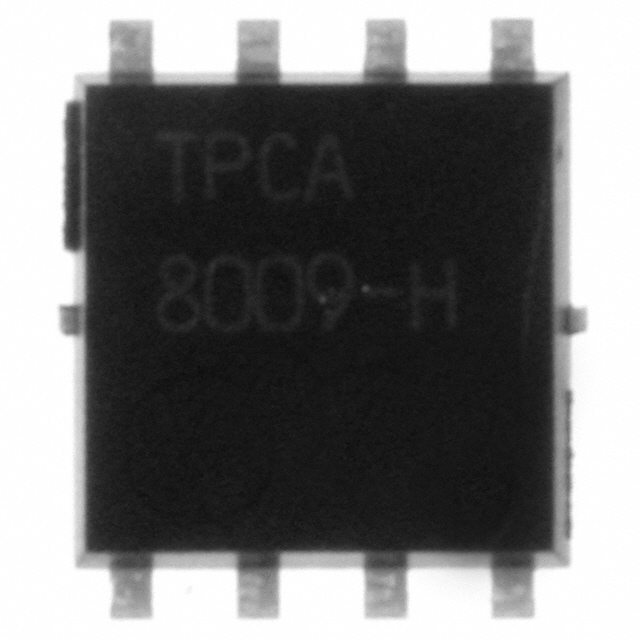

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TPCA8009-H(TE12L,Q
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET N-CH 150V 7A 8-SOPA
Datasheets:	1.TPCA8009-H(TE12L,Q.pdf 2.TPCA8009-H(TE12L,Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6914 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TPCA8009-H(TE12L,Q

Part Number	TPCA8009-H(TE12L,Q	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET N-CH 150V 7A 8-SOPA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6914 pcs	Data sheet	1.TPCA8009-H(TE12L,Q.pdf 2.TPCA8009-H(TE12L,Q.pdf
Vgs(th) (Max) @ Id	4V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-SOP Advance (5x5)
Series	-	Rds On (Max) @ Id, Vgs	350 mOhm @ 3.5A, 10V
Power Dissipation (Max)	1.6W (Ta), 45W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	TPCA8009HTE12LQTR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	600pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	150V
Detailed Description	N-Channel 150V 7A (Ta) 1.6W (Ta), 45W (Tc) Surface Mount 8-SOP Advance (5x5)	Current - Continuous Drain (Id) @ 25°C	7A (Ta)
