TPC8042(TE12L,Q,M)

Toshiba Semiconductor and Storage

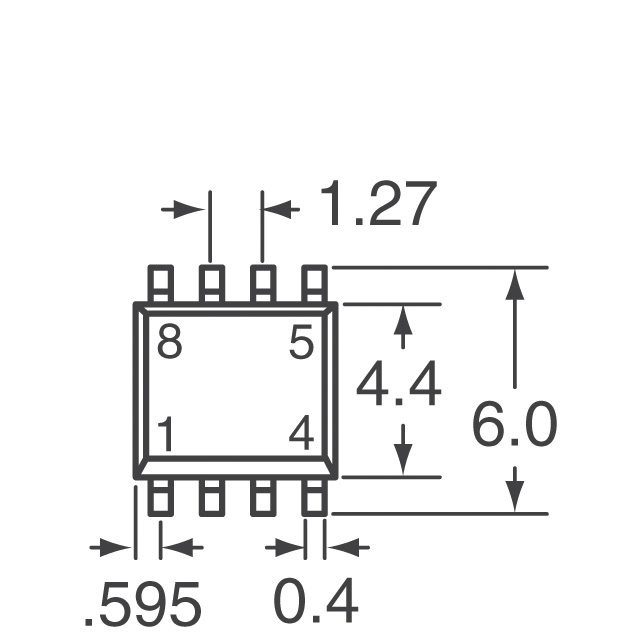

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TPC8042(TE12L,Q,M)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET N-CH 30V 18A 8-SOP
Datasheets:	1.TPC8042(TE12L,Q,M).pdf 2.TPC8042(TE12L,Q,M).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5857 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5857 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TPC8042(TE12L,Q,M)

Part Number	TPC8042(TE12L,Q,M)	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET N-CH 30V 18A 8-SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5857 pcs	Data sheet	1.TPC8042(TE12L,Q,M).pdf 2.TPC8042(TE12L,Q,M).pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-SOP (5.5x6.0)
Series	U-MOSIV	Rds On (Max) @ Id, Vgs	3.4 mOhm @ 9A, 10V
Power Dissipation (Max)	1W (Ta)	Packaging	Original-Reel®
Package / Case	8-SOIC (0.173", 4.40mm Width)	Other Names	TPC8042TE12LQMDKR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2900pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	56nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 18A (Ta) 1W (Ta) Surface Mount 8-SOP (5.5x6.0)	Current - Continuous Drain (Id) @ 25°C	18A (Ta)
