TLP785(TP6,F)

Toshiba Semiconductor and Storage

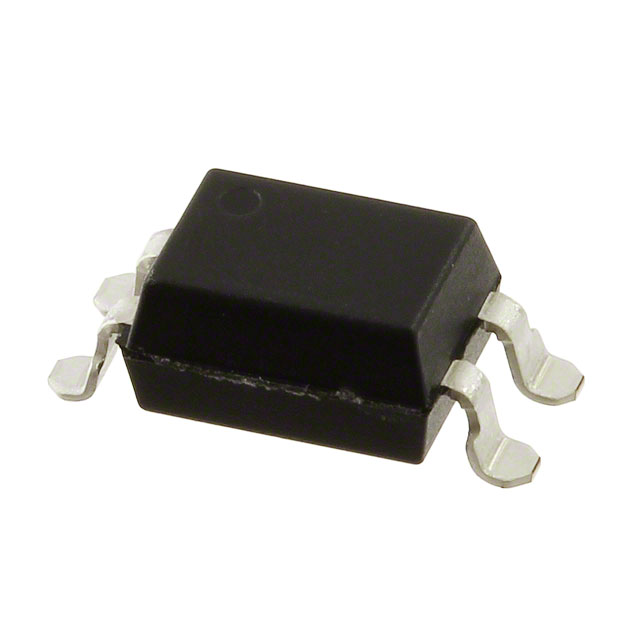

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP785(TP6,F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLATR 5KV TRANSISTOR 4-SMD
Datasheets:	TLP785(TP6,F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	88613 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 88613 pcs

Reference Price (In US Dollars)

1 pcs: $0.401

10 pcs: $0.327

25 pcs: $0.251

100 pcs: $0.226

250 pcs: $0.201

500 pcs: $0.171

1000 pcs: $0.141

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.401

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP785(TP6,F)

Part Number	TLP785(TP6,F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLATR 5KV TRANSISTOR 4-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88613 pcs	Data sheet	TLP785(TP6,F).pdf
Voltage - Output (Max)	80V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	3µs, 3µs	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	2µs, 3µs
Packaging	Cut Tape (CT)	Package / Case	4-SMD, Gull Wing
Output Type	Transistor	Other Names	TLP785(TP6F)CT
Operating Temperature	-55°C ~ 110°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	60mA
